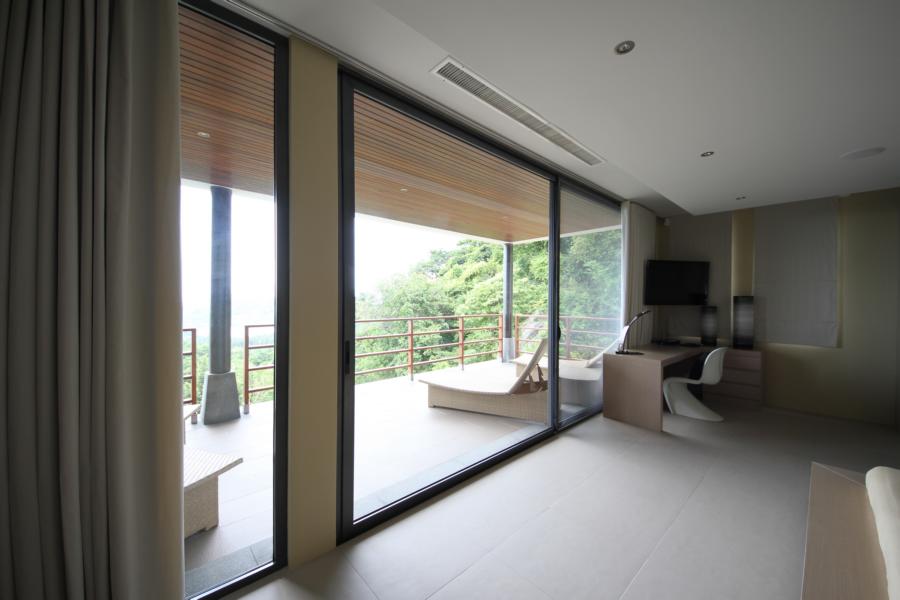

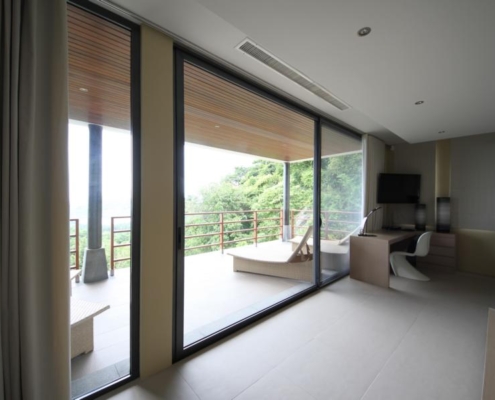

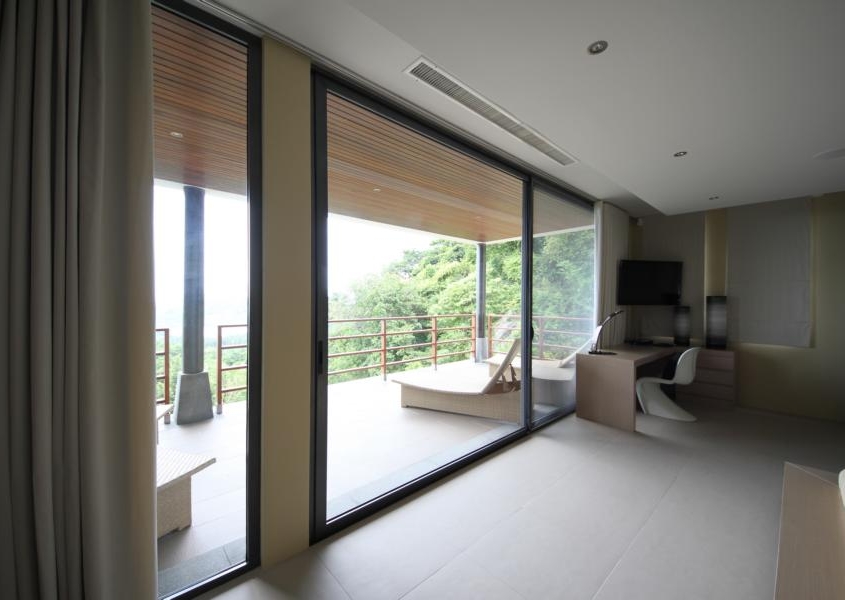

Interior view of SUNFLEX SF 42 aluminum framed sliding doors opening onto a tropical balcony.
Interior view of SUNFLEX SF 42 aluminum framed sliding doors opening onto a tropical balcony.
Interior view of SUNFLEX SF 42 aluminum framed sliding doors opening onto a tropical balcony.

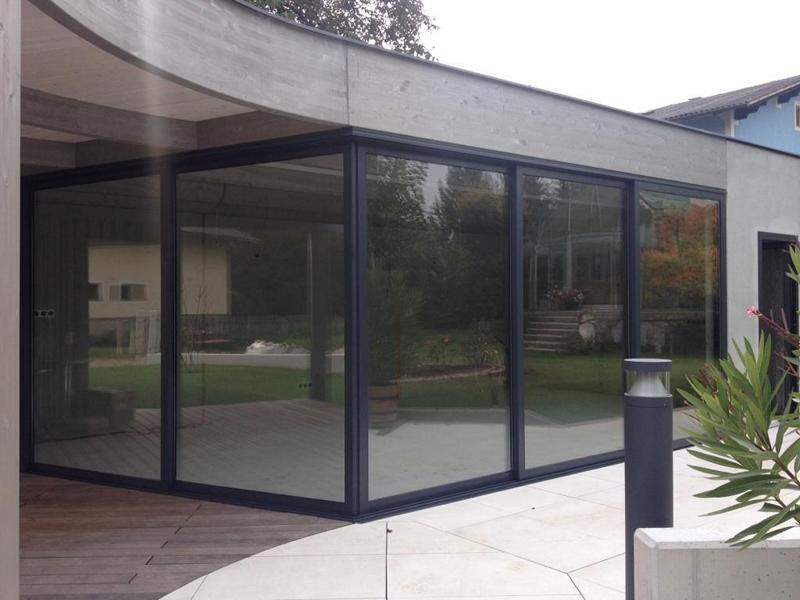

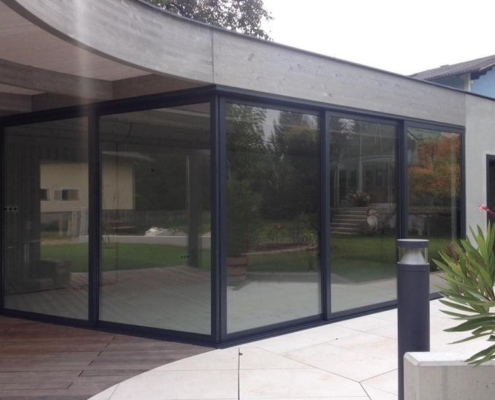

Exterior view of a corner glass wall installation using the SUNFLEX SF 42 framed system
Exterior view of a corner glass wall installation using the SUNFLEX SF 42 framed system

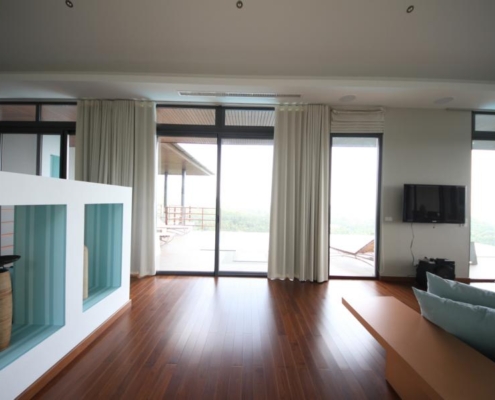

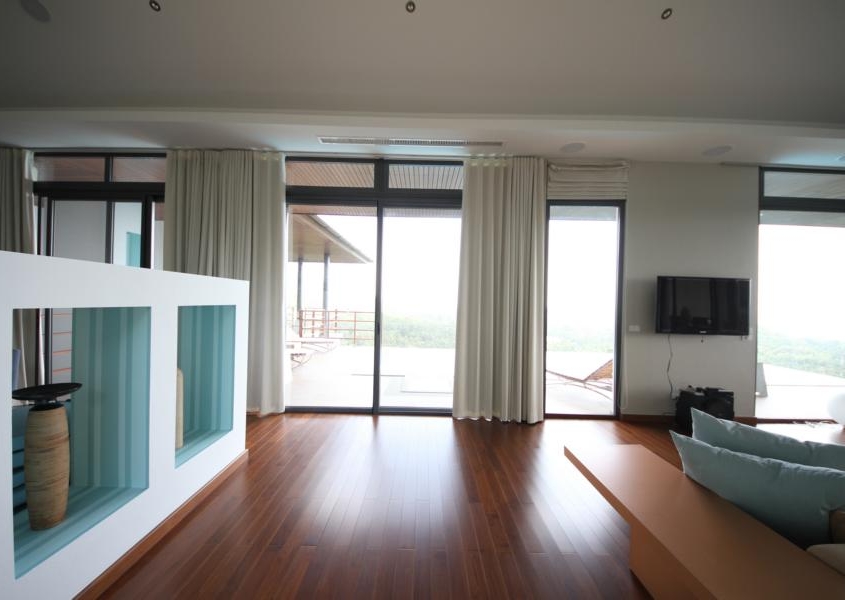

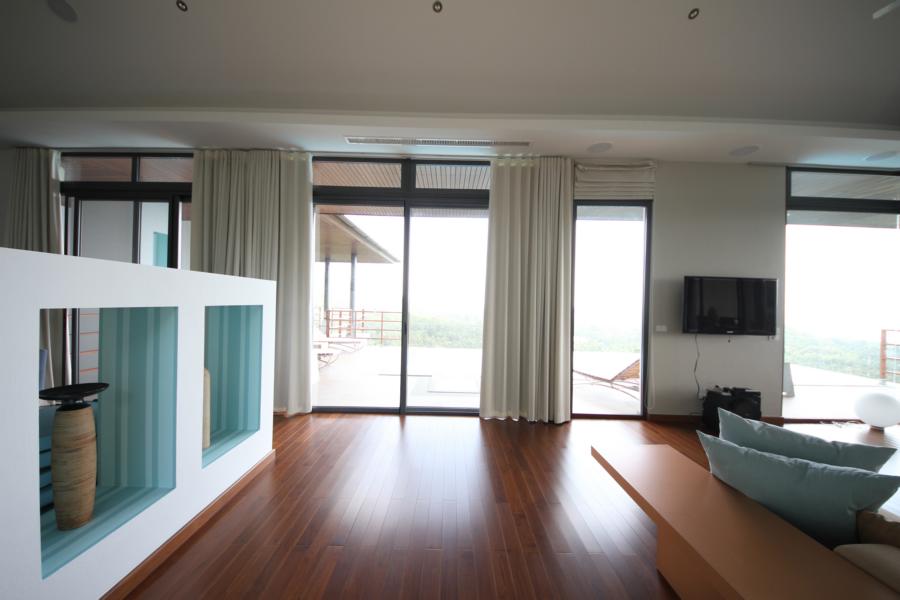

Bright minimalist living space with floor-to-ceiling SF 42 aluminum sliding doors.
Bright minimalist living space with floor-to-ceiling SF 42 aluminum sliding doors.

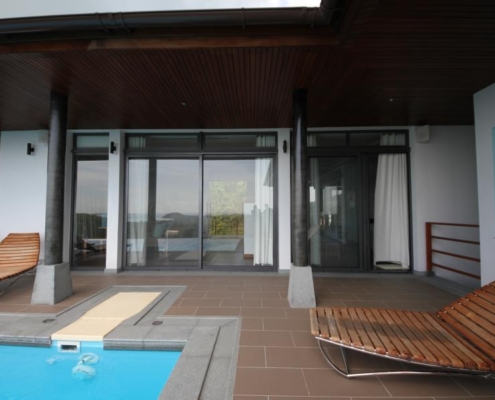

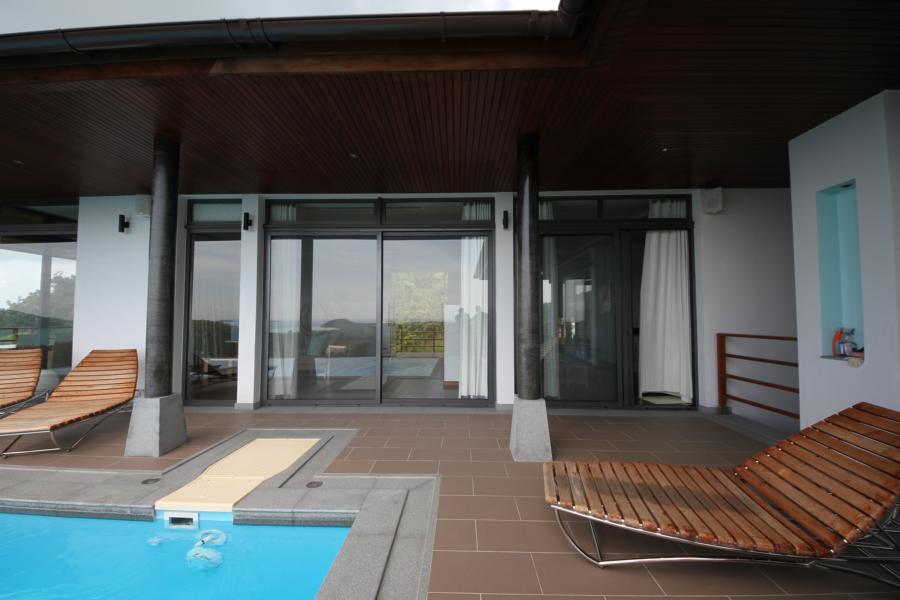

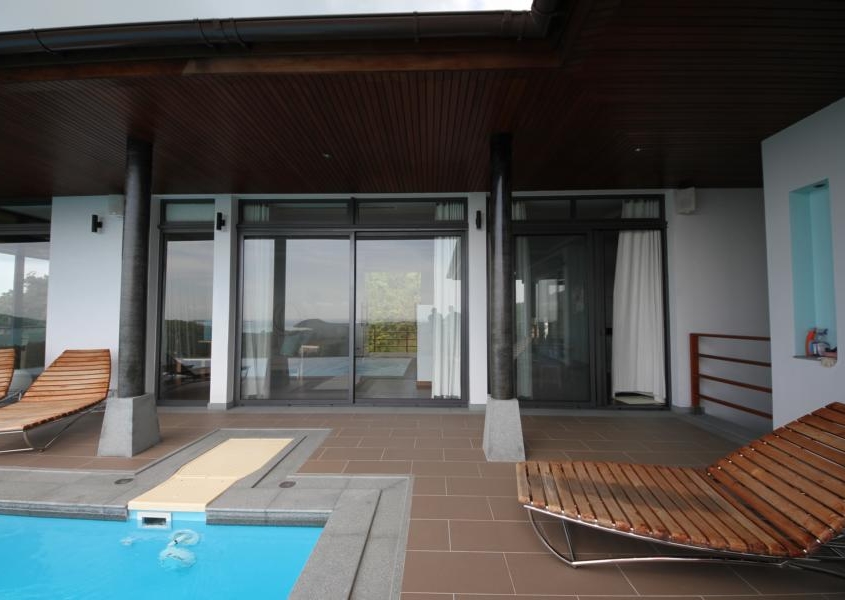

Poolside view of a luxury villa featuring SUNFLEX SF 42 aluminum patio doors.
Poolside view of a luxury villa featuring SUNFLEX SF 42 aluminum patio doors.

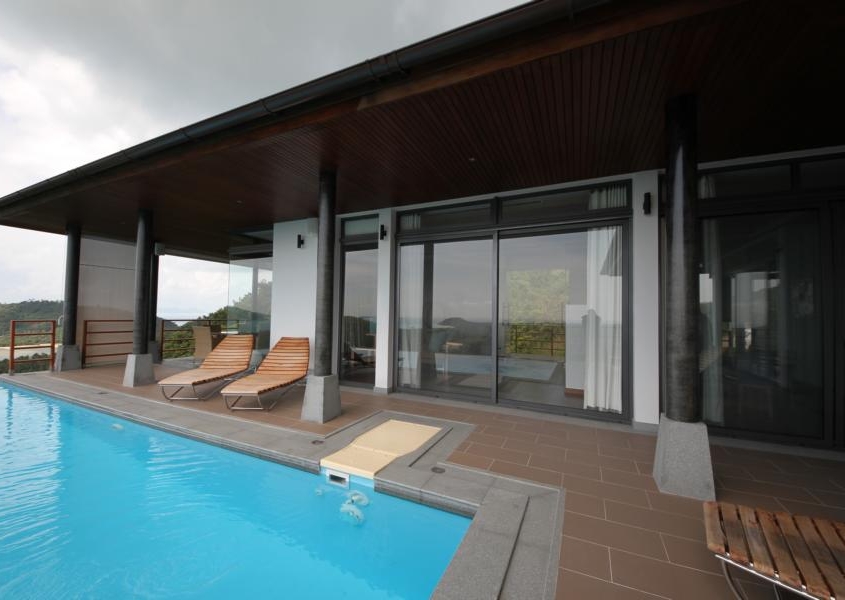

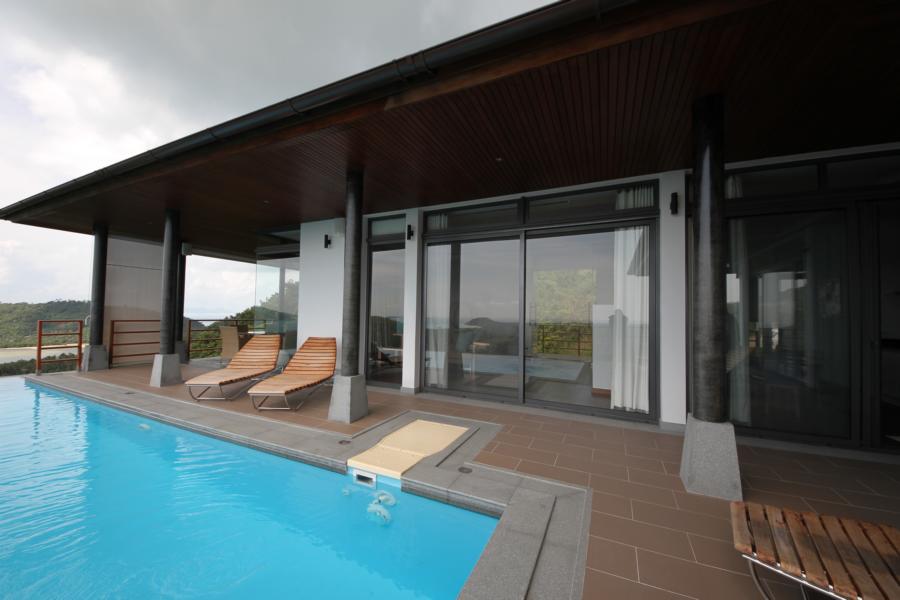

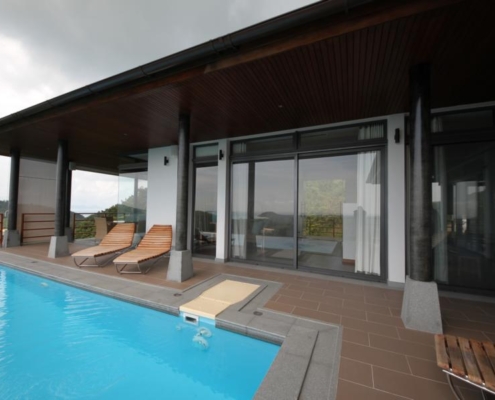

Exterior architecture of a luxury home with SF 42 aluminum framed sliding doors.
Exterior architecture of a luxury home with SF 42 aluminum framed sliding doors.

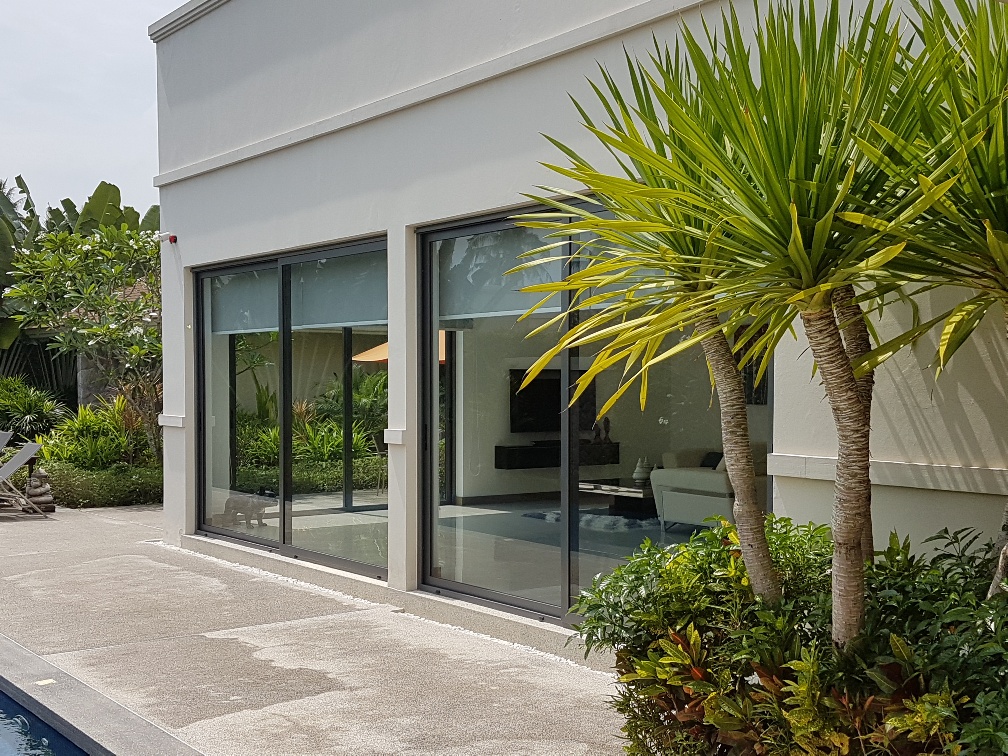

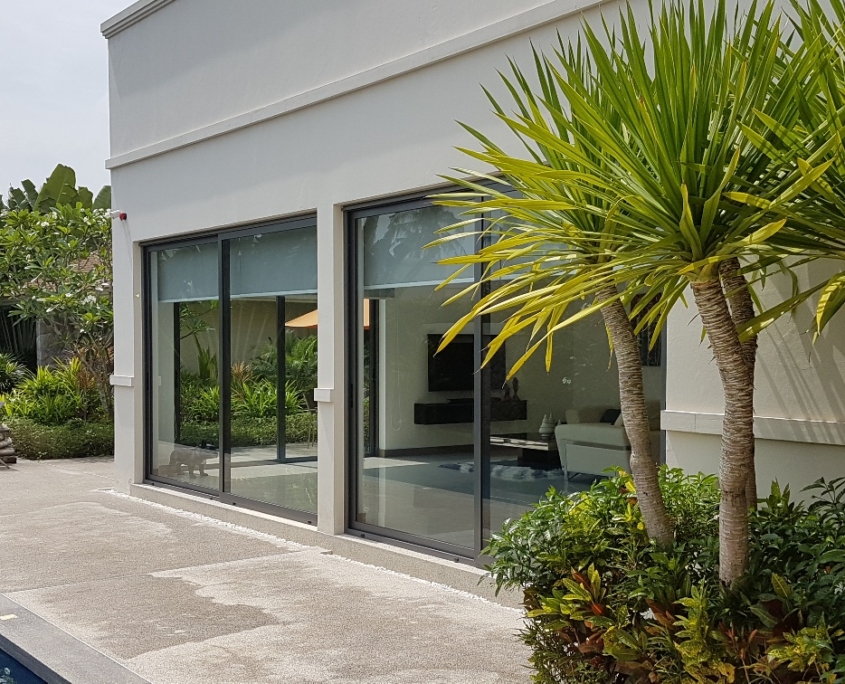

SF 42 glass sliding system integrated into a modern white building facade with tropical plants.
SF 42 glass sliding system integrated into a modern white building facade with tropical plants.

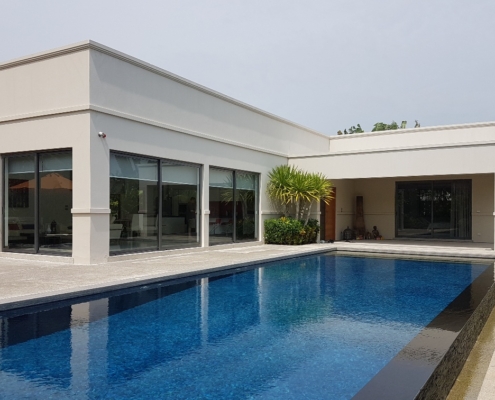

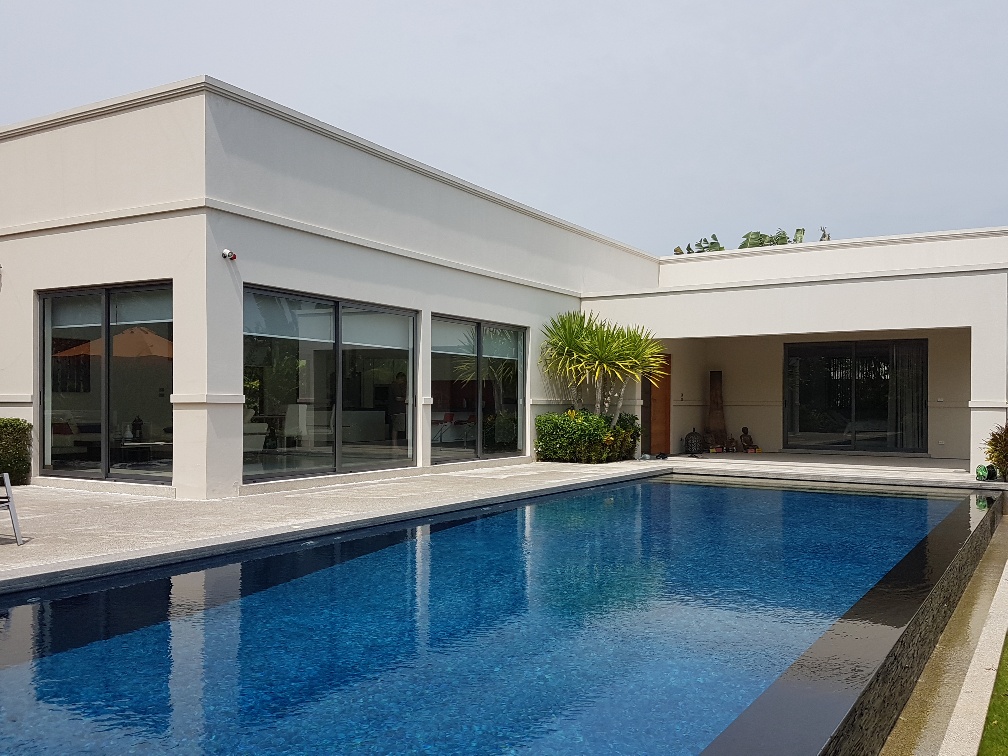

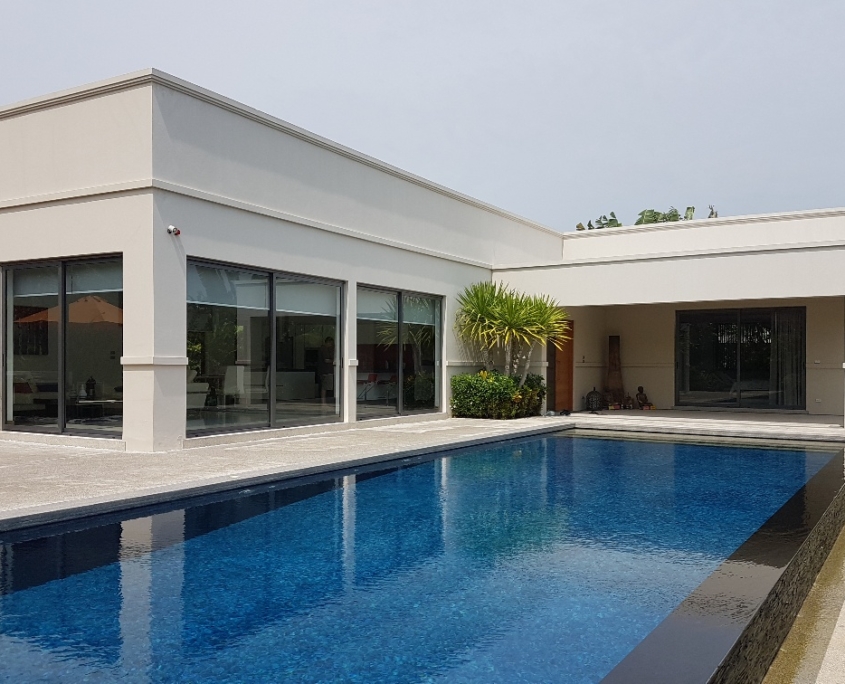

Large scale pool area installation of SUNFLEX SF 42 sliding doors for wide openings.
Large scale pool area installation of SUNFLEX SF 42 sliding doors for wide openings.

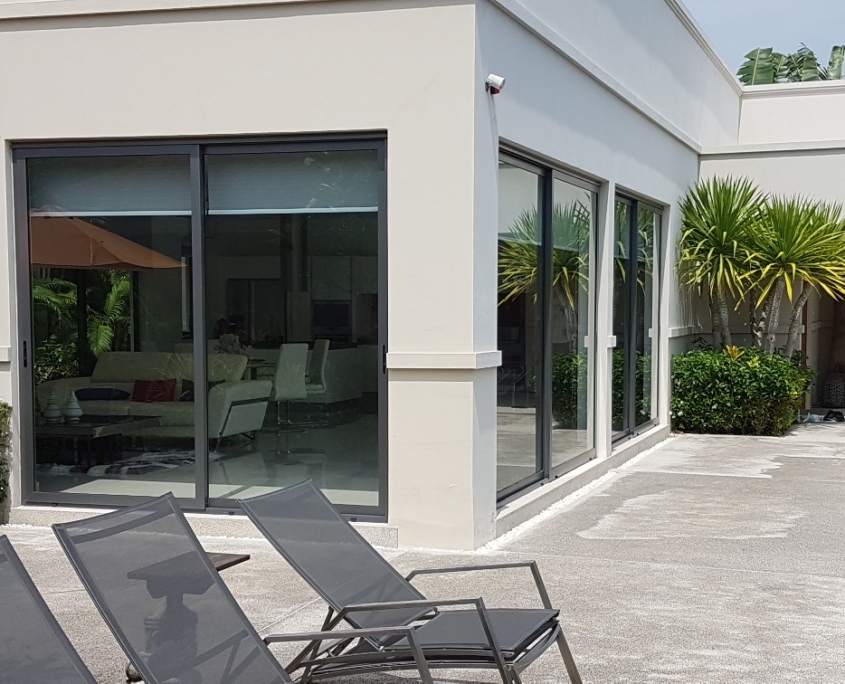

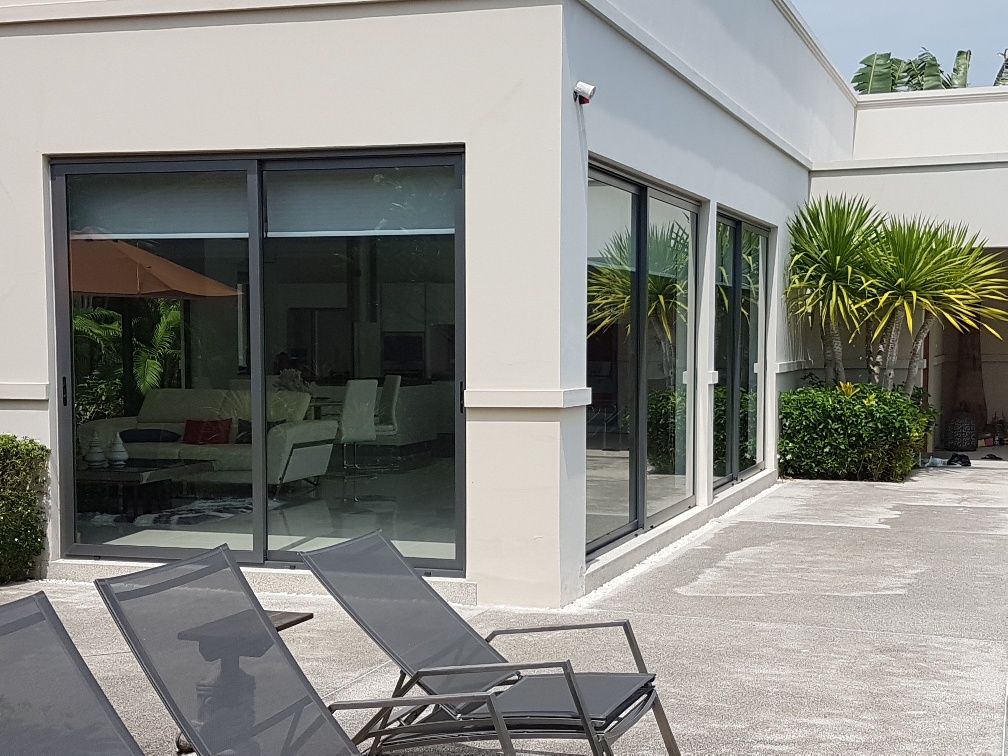

Detailed exterior view of the robust SF 42 aluminum sliding system installation.
Detailed exterior view of the robust SF 42 aluminum sliding system installation.

SF 42 SLIDING SYSTEM / ALUMINIUM FRAMED

The SUNFLEX SF 42 aluminium sliding system is the ultimate choice for large-scale architectural projects in Thailand that require exceptional stability and massive glass surfaces. While all-glass systems offer maximum transparency, the SF 42 is engineered for extreme heights and heavy-duty performance. It is specifically designed to meet the most stringent sealing and security requirements for rooftop terraces and luxury winter gardens.

Key Benefits of the SUNFLEX SF 42:

  • Unmatched Architectural Height: Realize grand designs with panel heights of up to 4.4 meters, creating a seamless connection between high-ceiling interiors and the tropical outdoors.

  • Maximum Stability & Security: The robust aluminium frame provides superior structural integrity, making it the perfect solution for high-rise installations and areas with high wind loads.

  • Smooth & Heavy-Duty Operation: Advanced ball-bearing technology ensures that even large, heavy glass panels (up to 180kg) glide silently and effortlessly along the floor tracks.

  • Versatile Design & Sealing: Specifically developed for rooftop terraces and winter gardens, the SF 42 offers exceptional protection against driving rain and tropical storms.

Discover more premium aluminium and glass sliding doors to elevate your living space or explore our full range of solutions.

Technical Details

Downloads

SF 42 Aluminium Framed Sliding System Brochure

SF 42 Installation Manual

SF 42 Technical Documentation

System Information

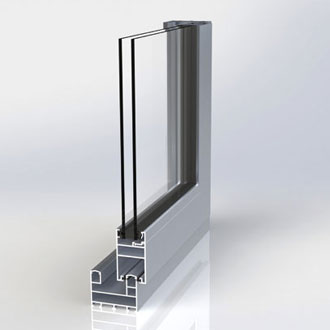

Profile System

  • Non insulated aluminium system
  • Floor-mounted sliding system
  • Sliding to the left or right as desired

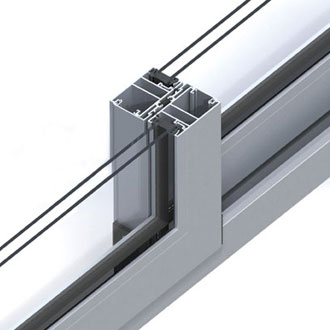

  • Narrow exterior views: Frame 50 mm, casement 40 mm, frame bar 70 mm

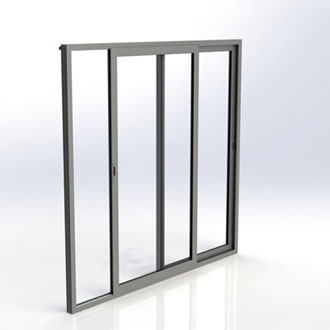

  • Opening types: 2 or 3 tracks with up to 6 moving casements
  • Max. door casement height: 4,400 mm
  • Max. casement weight: 180 kg
  • Construction depth: 2 track 65/50 mm, 3 track 115/50 mm
  • Glazing thickness of 6-22 mm possible

A: The SUNFLEX SF 42 system is designed for extraordinary architectural spaces. Due to its highly robust aluminium profile, panels can be constructed up to an impressive 4.4 meters in height. This makes it the ultimate premium choice for luxury villas with high ceilings or “double volume” living spaces, offering uninterrupted floor-to-ceiling views.

A: Absolutely. Because the SF 42 can reach extreme heights, it relies on exceptionally strong frames. Engineered in Germany, the system guarantees extreme structural stability and is rigorously tested to withstand heavy wind loads and storms, ensuring both safety and effortless operation despite the massive glass weight.

A: Yes! Despite its robust design required for oversized glass panels, the SF 42 can be installed with a fully recessed bottom track. This provides a seamless, barrier-free transition between your indoor living area and outdoor terrace, combining monumental scale with elegant, trip-free accessibility.
