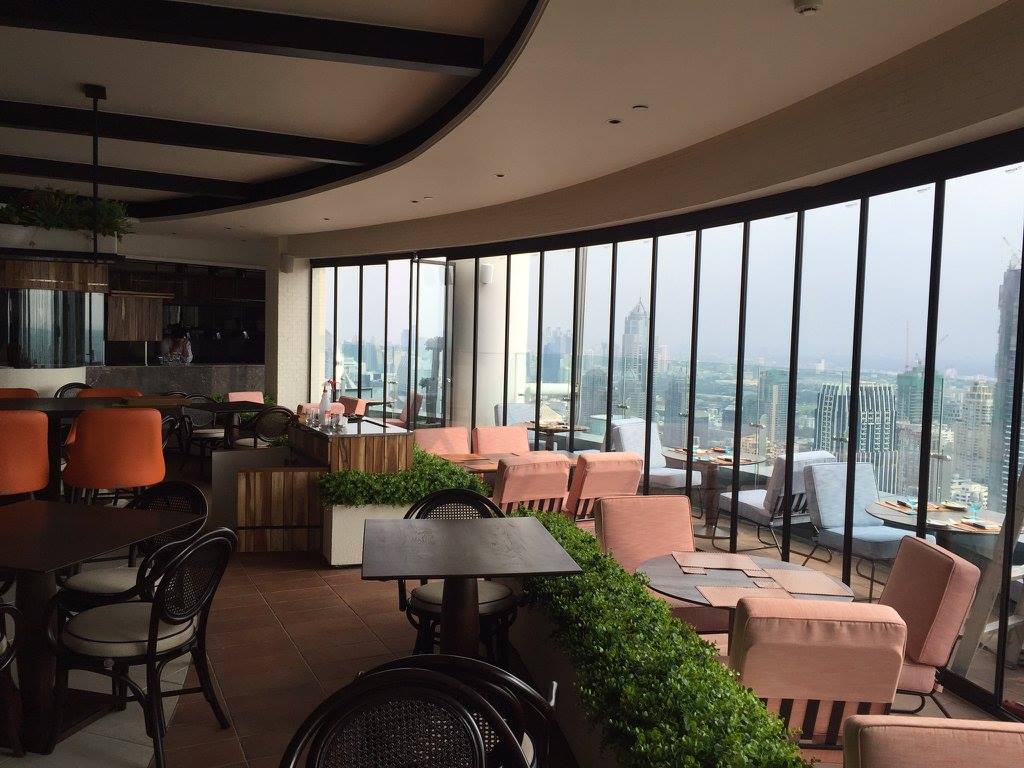

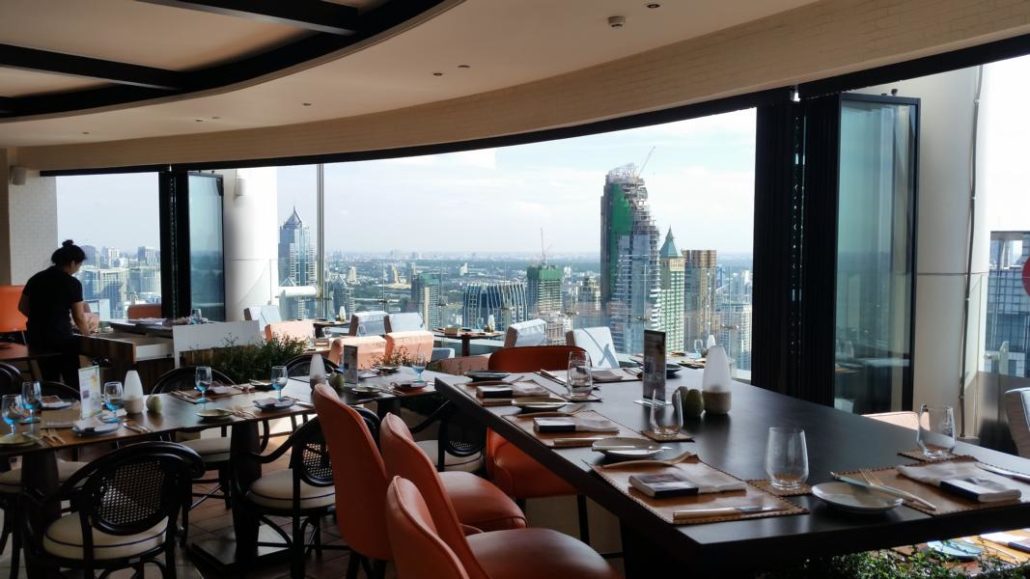

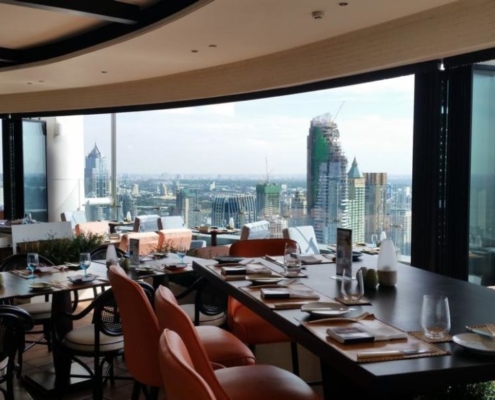

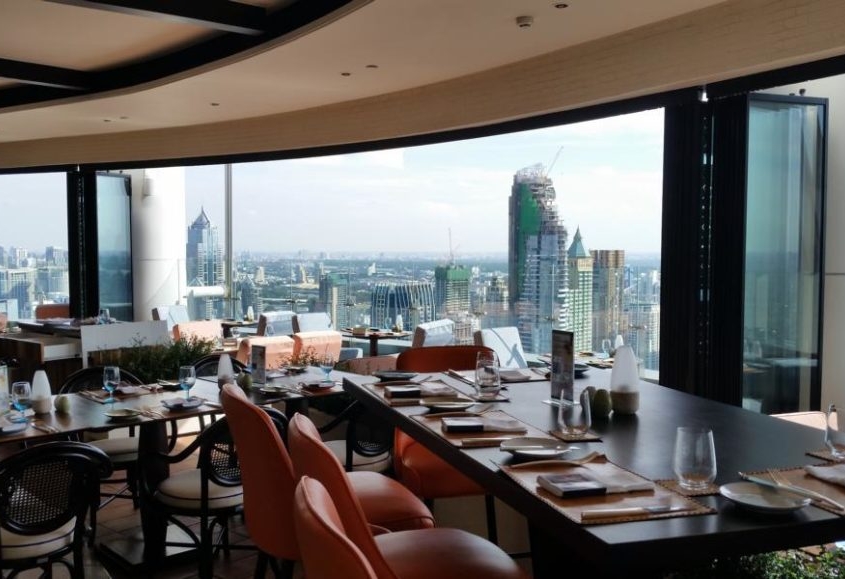

Framed SF 25 slide and turn system installed in a Bangkok skyscraper restaurant for a panoramic view.
Framed SF 25 slide and turn system installed in a Bangkok skyscraper restaurant for a panoramic view.
Framed SF 25 slide and turn system installed in a Bangkok skyscraper restaurant for a panoramic view.

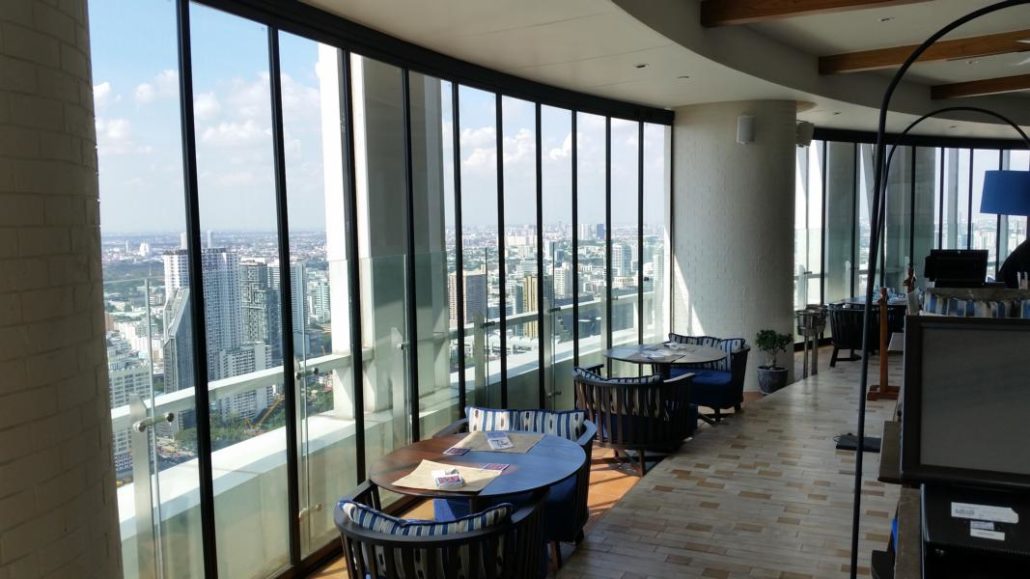

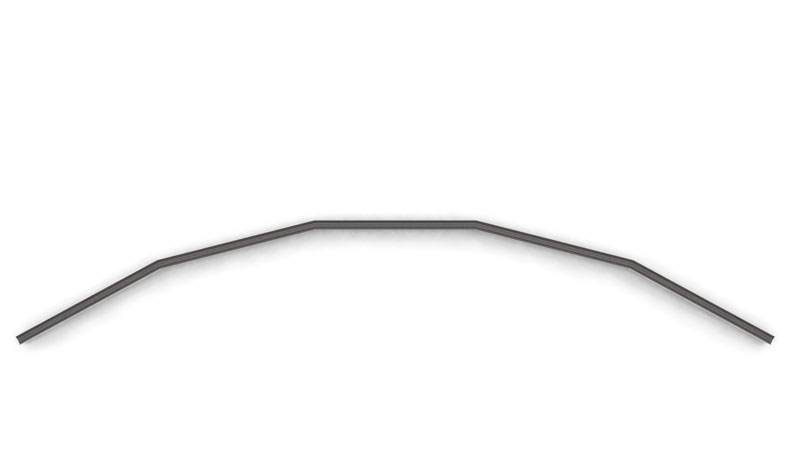

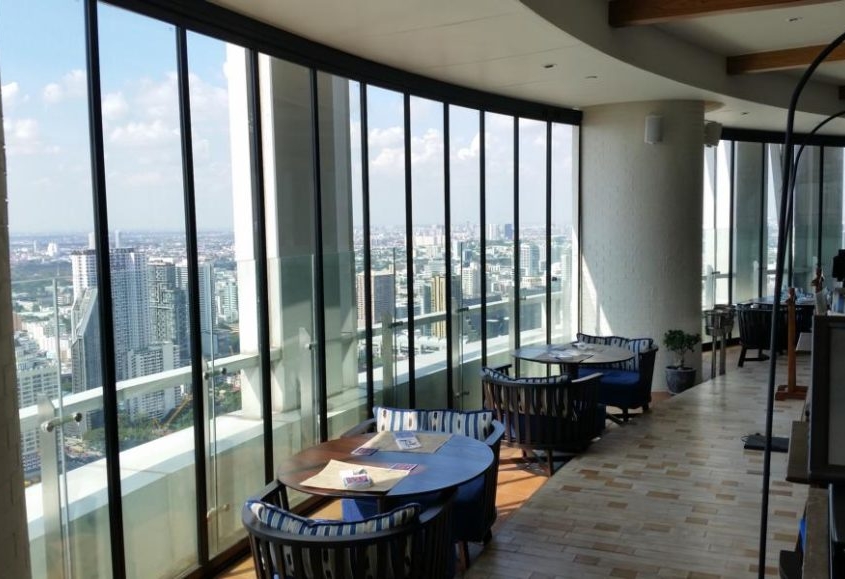

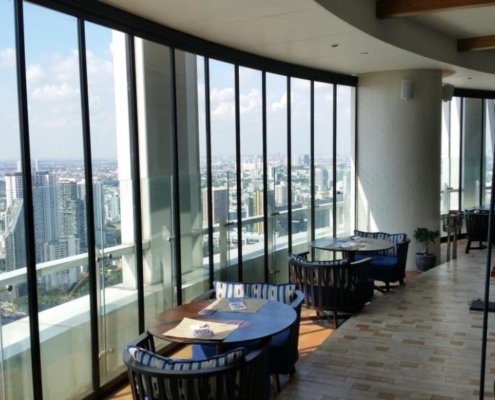

Curved design of the Sunflex SF 25 framed slide and turn glass system for a luxury restaurant.
Curved design of the Sunflex SF 25 framed slide and turn glass system for a luxury restaurant.

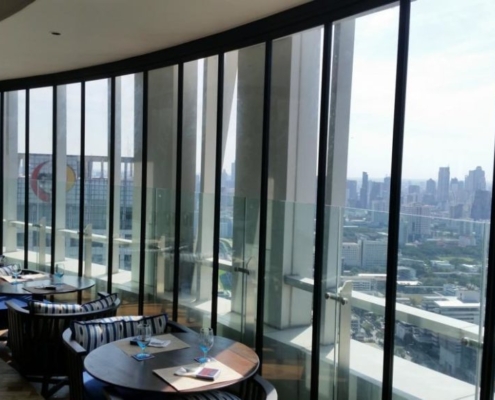

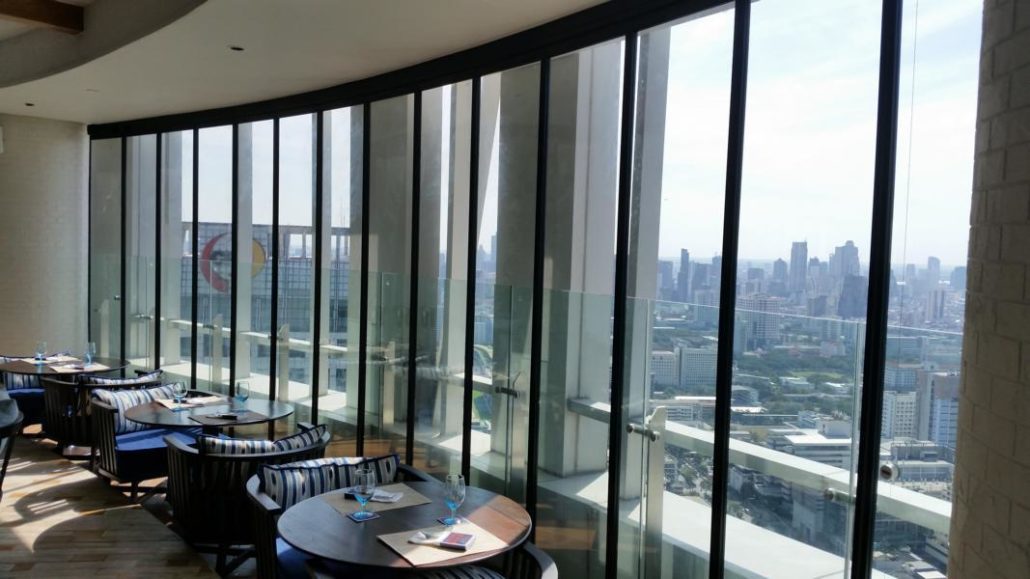

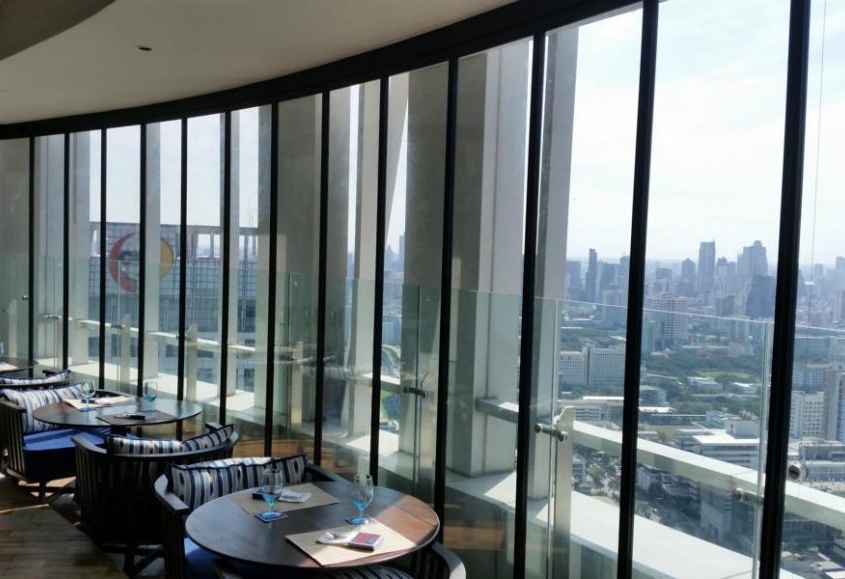

Framed SF 25 slide and turn glass wall maximizing natural light on a high-rise balcony.
Framed SF 25 slide and turn glass wall maximizing natural light on a high-rise balcony.

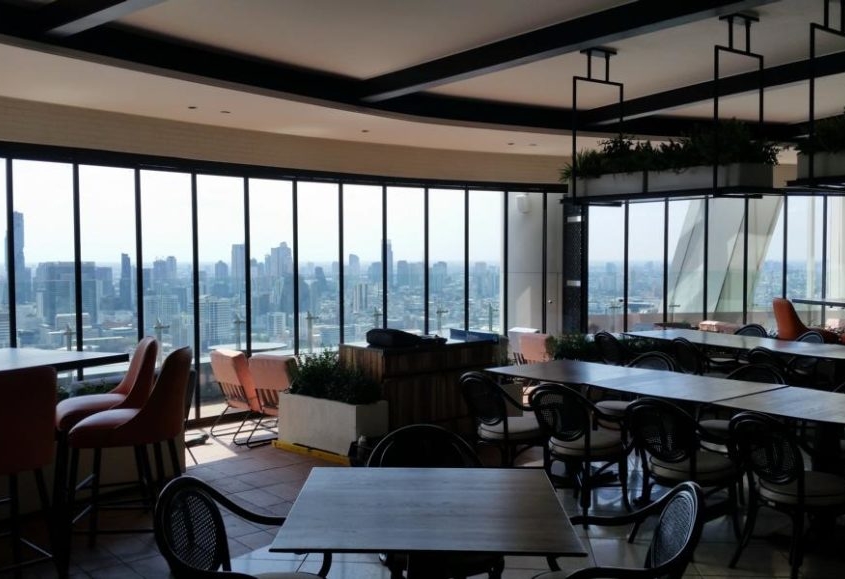

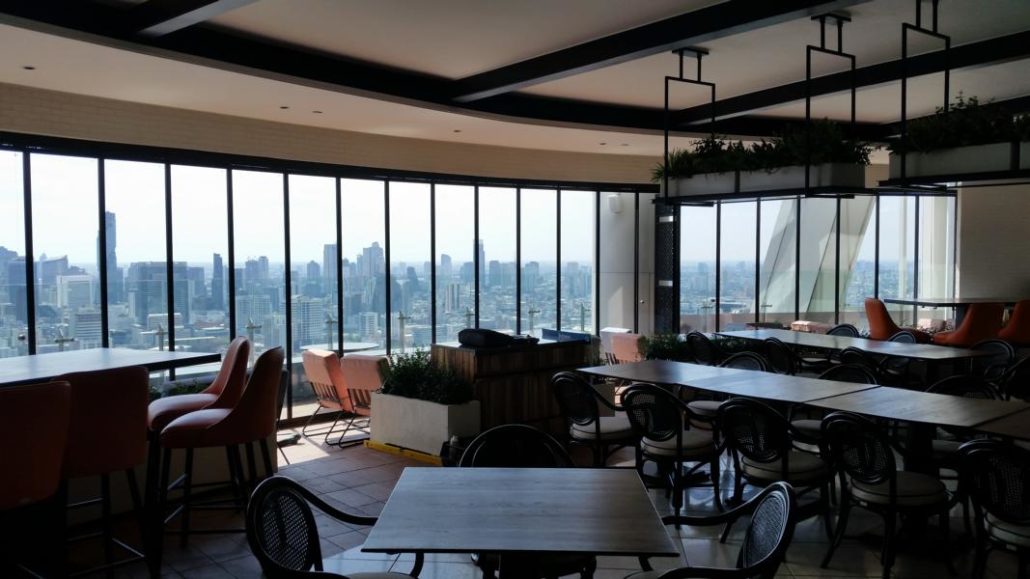

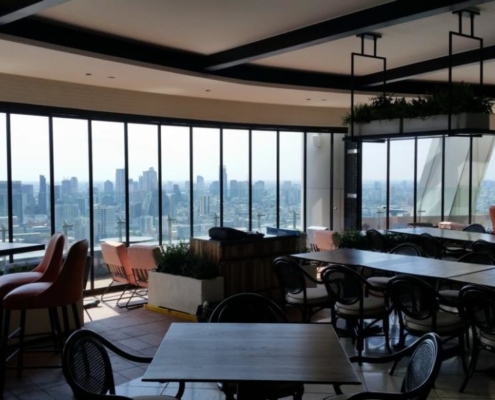

Windproof and noise-reducing SF 25 slide and turn glass system for a rooftop dining area.
Windproof and noise-reducing SF 25 slide and turn glass system for a rooftop dining area.
Corner installation of the SF 25 slide and turn glass panels in a restaurant lounge.
Corner installation of the SF 25 slide and turn glass panels in a restaurant lounge.

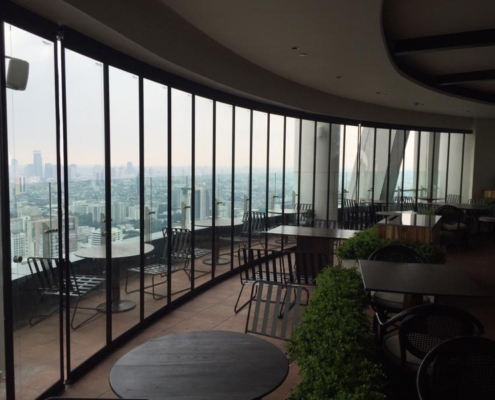

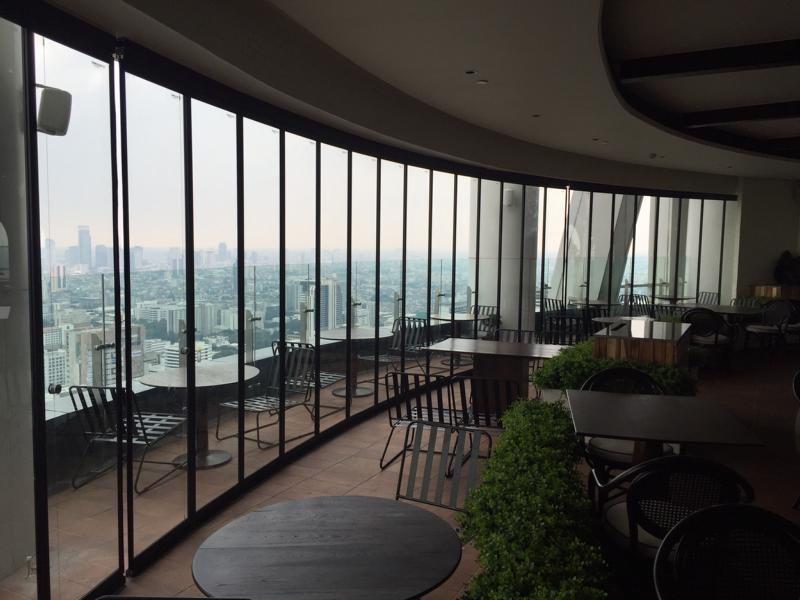

Aluminum framed SF 25 slide and turn enclosure offering a panoramic view of the Bangkok skyline.
Aluminum framed SF 25 slide and turn enclosure offering a panoramic view of the Bangkok skyline.

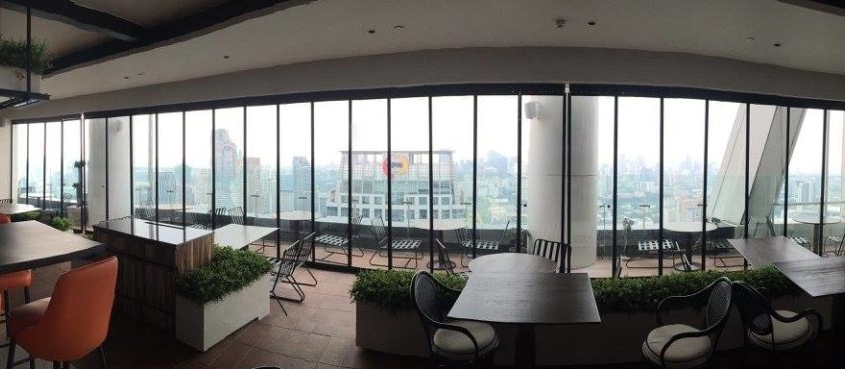

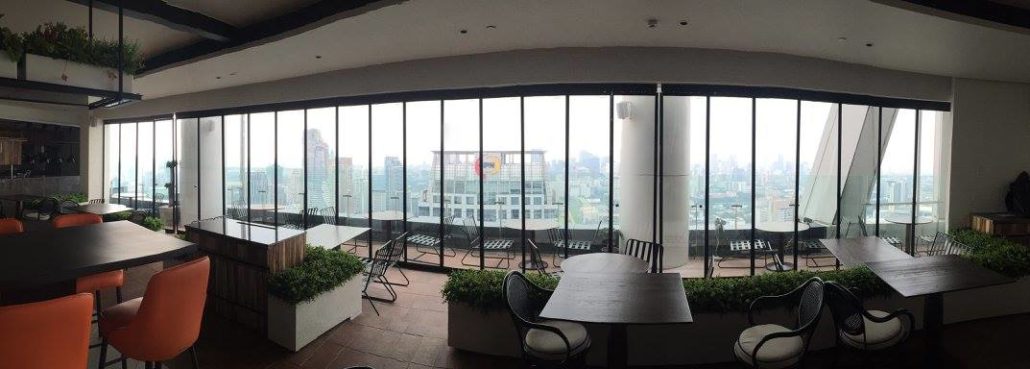

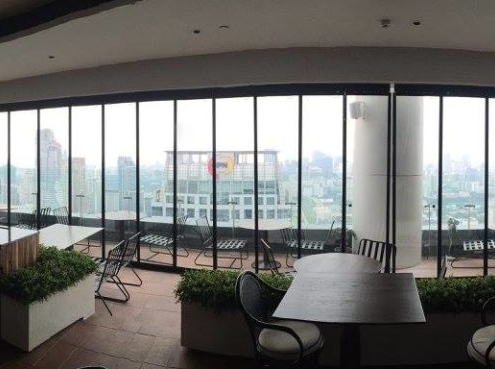

Sunflex SF 25 slide and turn glass partition system for restaurants and commercial spaces.
Sunflex SF 25 slide and turn glass partition system for restaurants and commercial spaces.

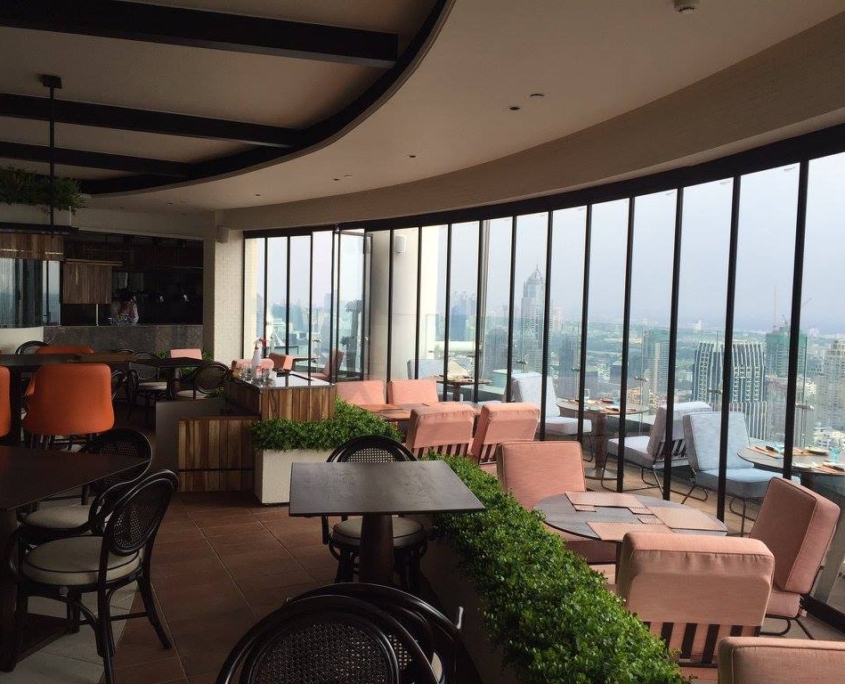

Maximizing usable space and safety with the SF 25 slide and turn glass facade on a high-rise building.
Maximizing usable space and safety with the SF 25 slide and turn glass facade on a high-rise building.

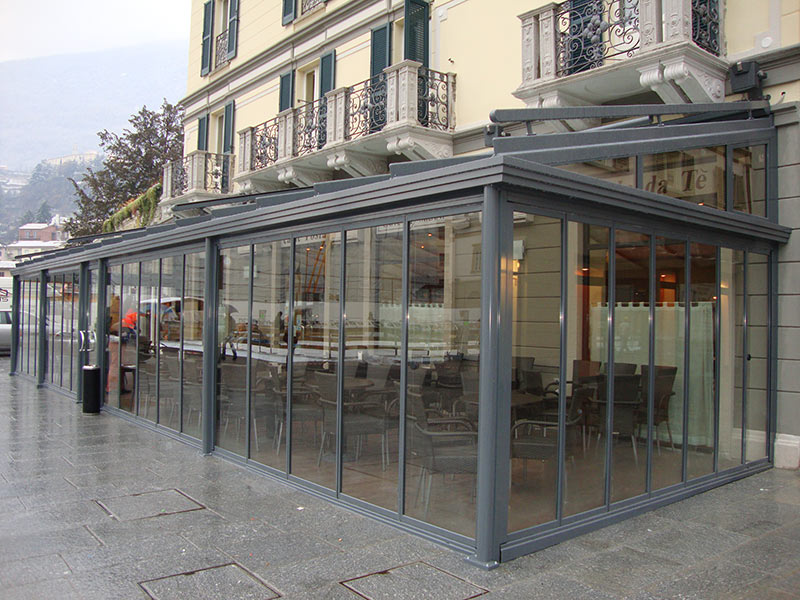

Weatherproof framed SF 25 slide and turn system protecting a restaurant terrace from rain.
Weatherproof framed SF 25 slide and turn system protecting a restaurant terrace from rain.

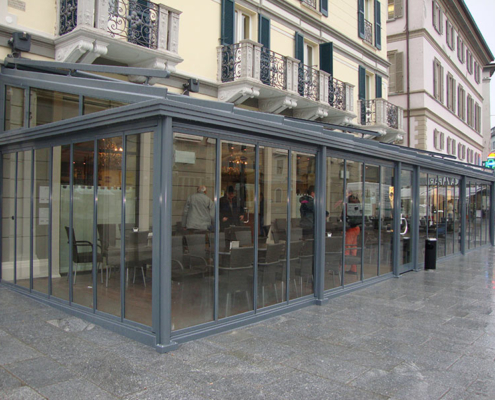

Rain protection with the Sunflex SF 25 slide and turn glass system for all-season outdoor use.
Rain protection with the Sunflex SF 25 slide and turn glass system for all-season outdoor use.

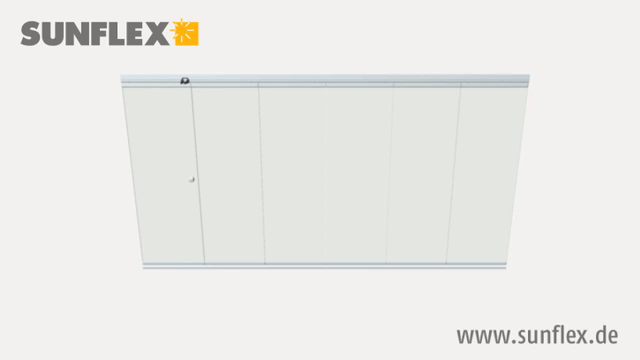

SF 25 SLIDE & TURN SYSTEM / ALUMINIUM FRAMED

Experience the perfect combination of transparency and protection. The SUNFLEX SF 25 Framed Slide-and-Turn system is specifically designed for balconies and patios that require superior weather resistance and sound insulation. With slim, elegant aluminum frames, it offers enhanced stability and exceptional sealing against wind and driving rain—making it the ideal choice for high-rise apartments and coastal properties.

Key Benefits of the SUNFLEX SF 25:

  • Unobstructed Views: Individual panels slide independently and stack neatly to the side, allowing for a 100% clear opening and a seamless connection to the outdoors.

  • Enhanced Weather Protection: The slim aluminum frames provide superior sealing against wind and driving rain, ensuring your space remains dry and comfortable.

  • Superior Sound Insulation: Engineered for peace and quiet, the framed construction reduces external noise by up to 34 dB.

  • Effortless & Silent Operation: Featuring a premium top-hung carriage system with stainless steel bearings, the panels glide smoothly for long-lasting durability.

  • Maximum Versatility: Panels can be designed to open inwards or outwards and stack to either or both sides, depending on your layout.

  • Easy Maintenance: The smart slide-and-turn technology allows you to safely clean the outside of the glass panels from inside the building.

Explore our full collection of versatile slide and turn systems tailored for modern architecture.

Technical Details

Downloads

SF 25 Framed Test Report (Wind Load 8mm 10mm Glass) 1

SF 25 Framed Test Report (Wind Load 8mm 10mm Glass) 2

System Information

Profile system

  • Low-wear and maintenance-free fittings
  • Different the bottom tracks
  • Pressure-free drainage of bottom track by inclined floor construction
  • Catch channel at the inside of the bottom track to drain condensation and cleaning waters

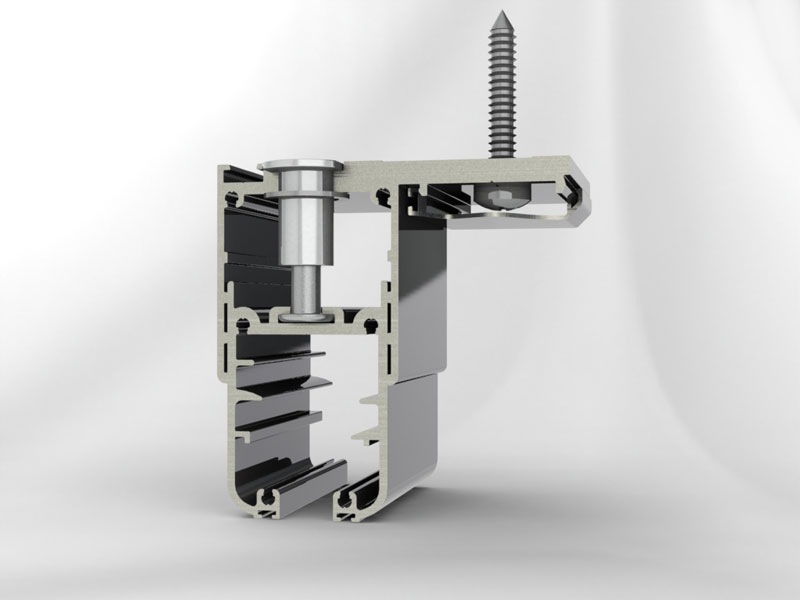

  • Top-hung construction with a choice of flush or weather-proof bottom track options
  • Horizontal running mechanism with triple stainless steel ball bearings and carbon fiber-reinforced polyamide wheels
  • Inwards or outwards opening of the panels
  • Choice of panel partition and sliding direction
  • Height compensation of up to 22 mm (+-11 mm)
  • Double brush seal with plastic bridge at top and bottom of the glass panels
  • Airborne sound insulation up to Rw 34 dB according to DIN EN ISO 140-3
  • Glass thickness of 8 and 10 mm depending on static requirements

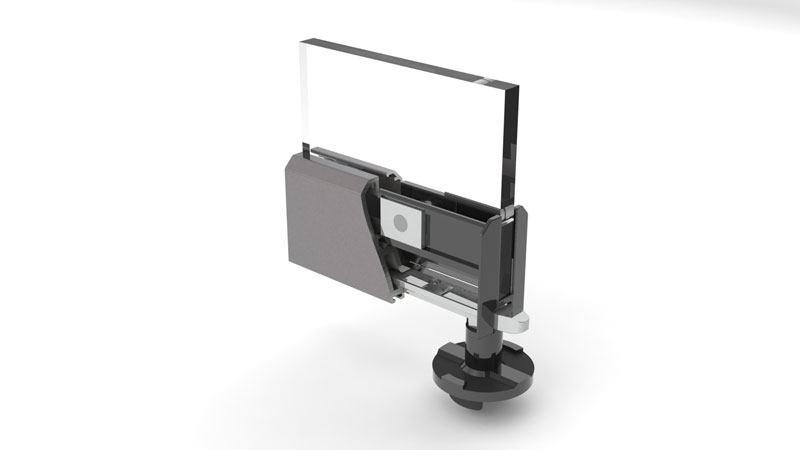

  • Screwed glazing for effortless future replacement of glass

Fittings

  • All fittings are concealed within the profiles
  • Low-maintenance, non-corroding and fail safe fittings
  • Inside and/or outside locking and unlocking possible

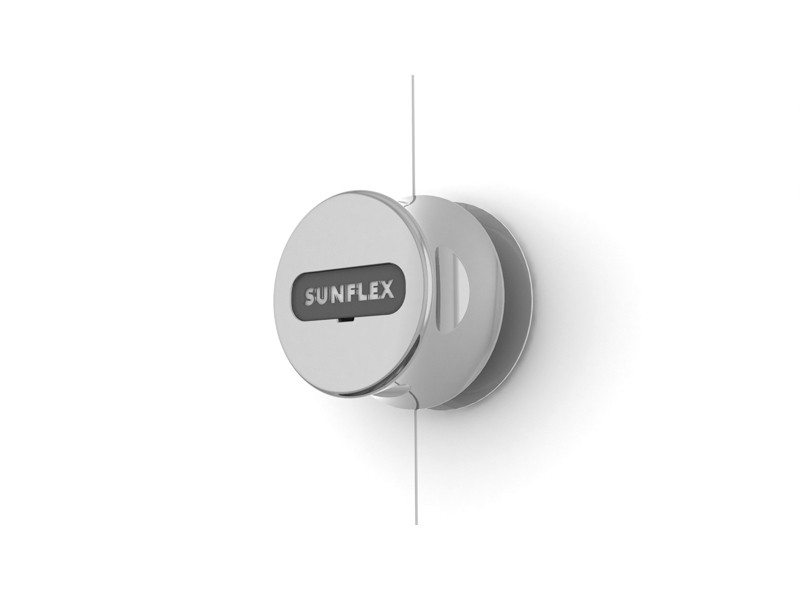

  • Locking and unlocking via pull rod or turning knob Optionally with lever lock (“child-proof”)

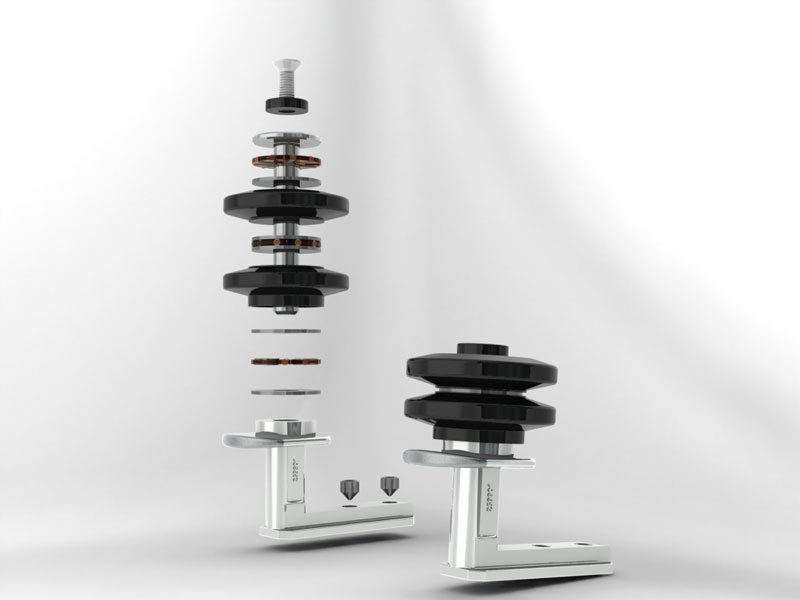

Running assembly

  • Top running, maintenance-free horizontal running assemblies, each equipped with two rollers
  • The running assemblies feature each three smooth-running needle bearings and two carbon fibre reinforced polyamide rollers
  • Running assemblies out of stainless steel metal components
  • Low-noise, low-wear, heat and cold resistant running surfaces
  • Running assemblies pivot at any angle between 90° and 180°

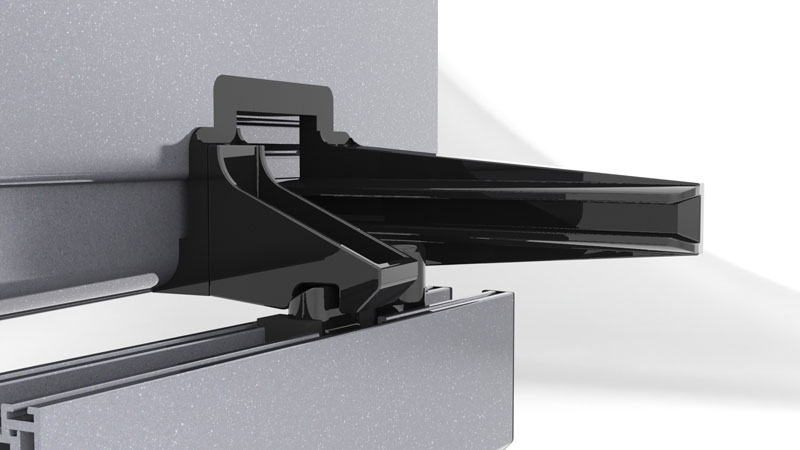

  • Sealing and ventilation
  • Tongue and groove system between the panels
  • Brush gaskets are fitted horizontally at the top and bottom on the inside and outside
  • Lower and upper brush gaskets are attached to the panel frames and not to the guide track

Glazing

  • 6, 8, and 10 mm tempered safety glass panes (ESG-H)
  • Panes secured via concealed screw-fixing system in top and bottom panel profiles
  • Subsequent replacement of panes without difficult

Drainage

  • Unpressurized drainage via inclined floor construction
  • Integrated water drainage channel on inside of bottom track

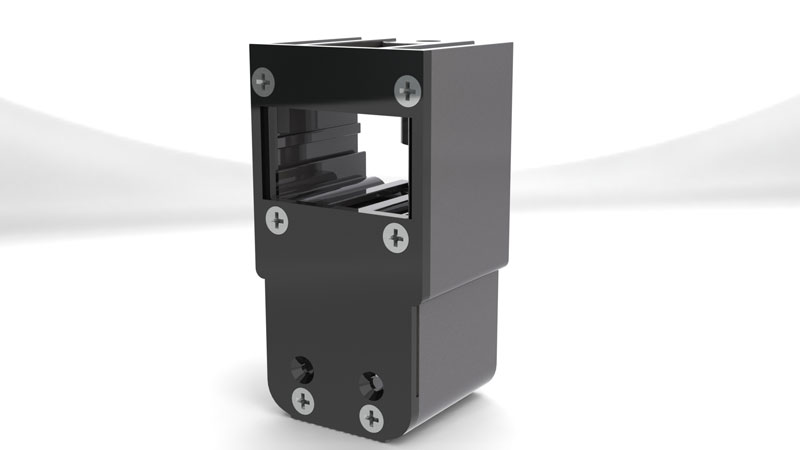

  • End-caps for lateral sealing of bottom track
