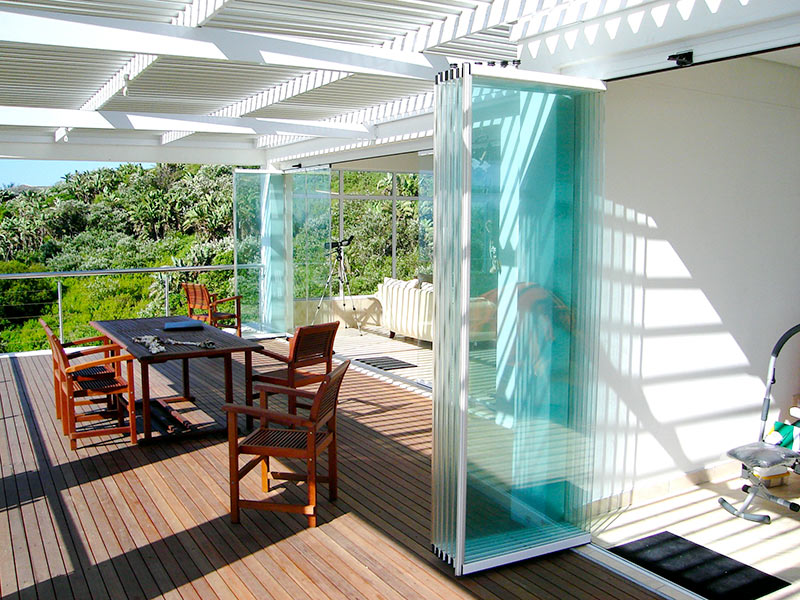

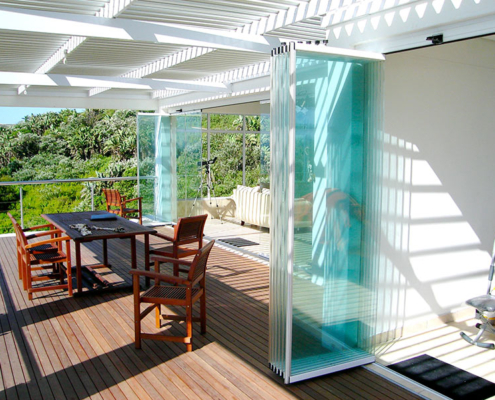

SUNFLEX SF 25 frameless glass panels parked at the side on an outdoor terrace.Slide and Turn Systems
SUNFLEX SF 25 frameless glass panels parked at the side on an outdoor terrace.
SUNFLEX SF 25 frameless glass panels parked at the side on an outdoor terrace.

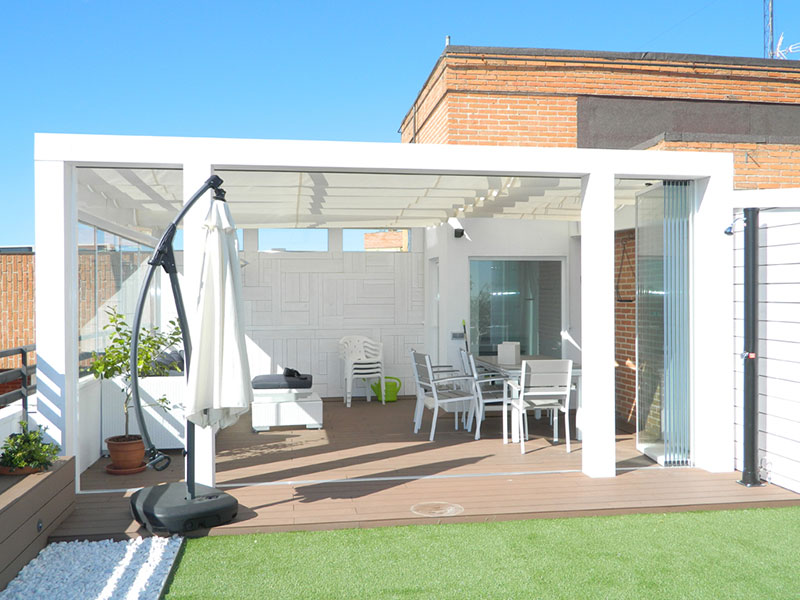

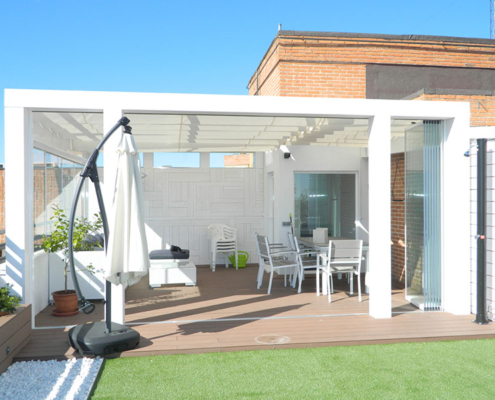

Frameless SF 25 all-glass system enclosing a modern white patio area.
Frameless SF 25 all-glass system enclosing a modern white patio area.

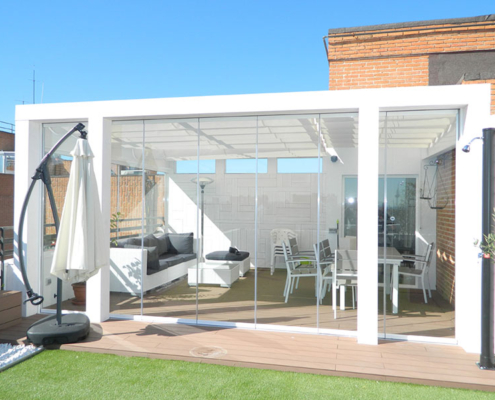

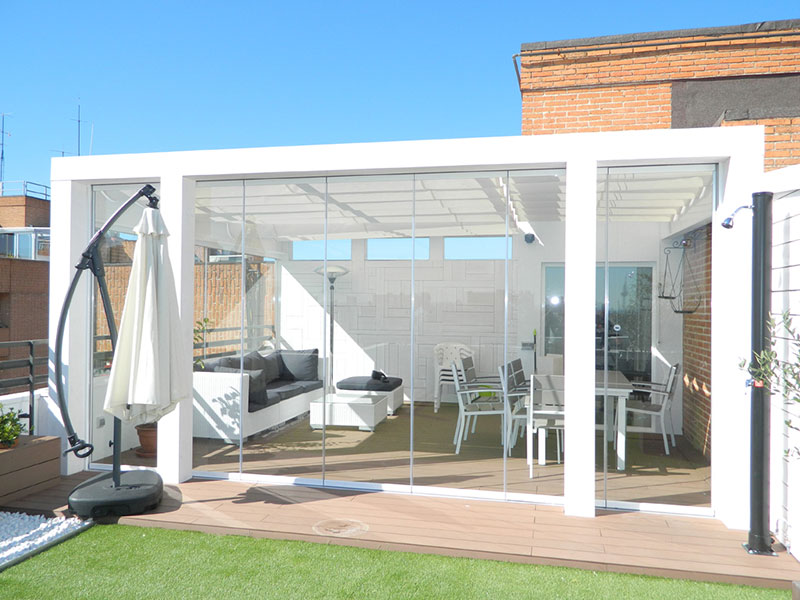

Operation of SF 25 slide and turn system for flexible patio glazing in Thailand.
Operation of SF 25 slide and turn system for flexible patio glazing in Thailand.

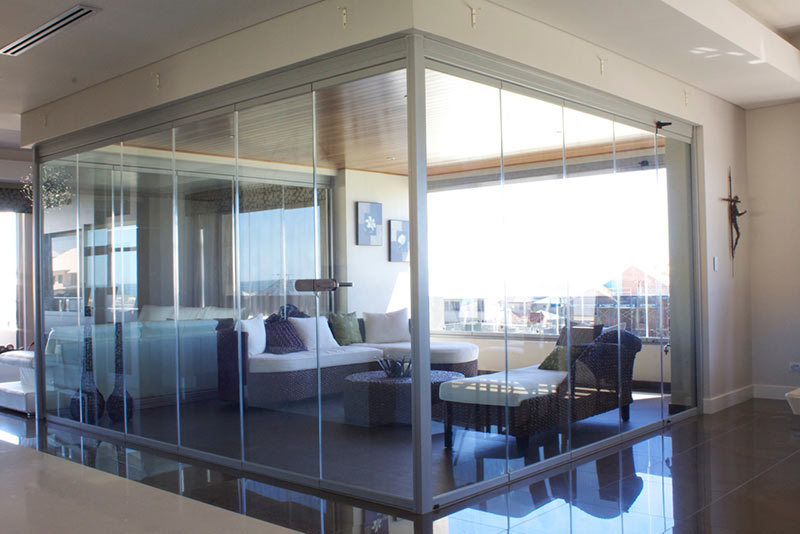

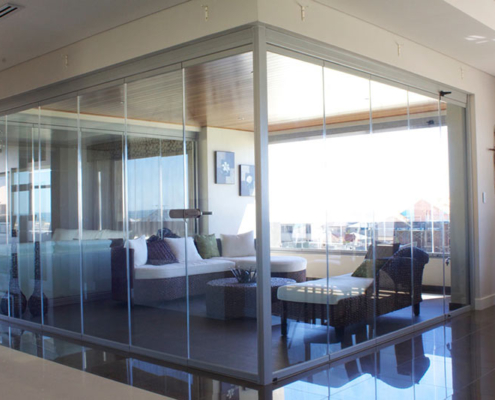

Modern living room featuring a frameless SF 25 corner glass sliding system.
Modern living room featuring a frameless SF 25 corner glass sliding system.

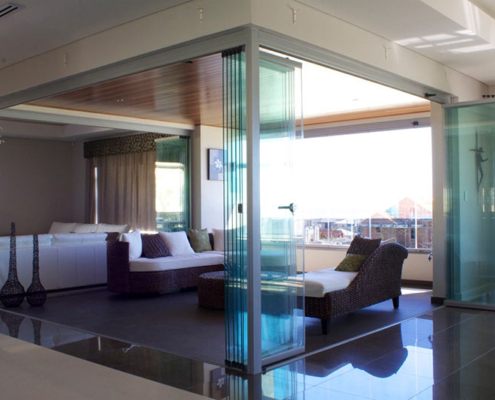

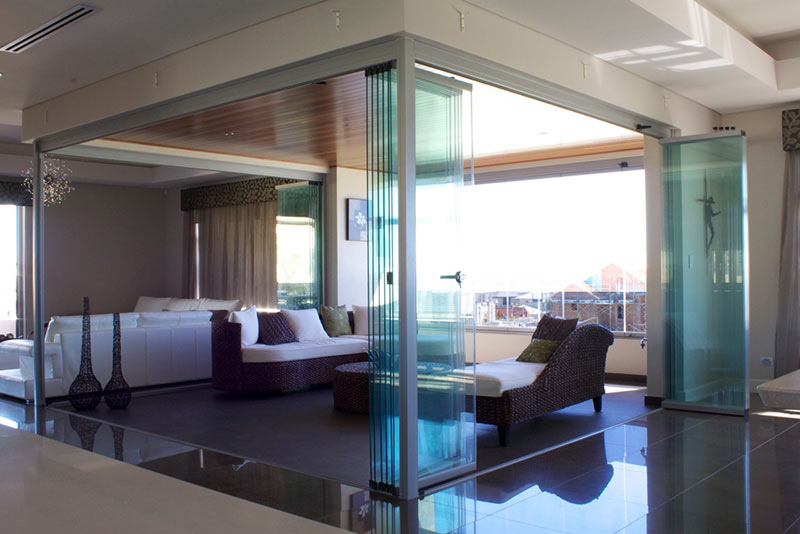

SF 25 all-glass panels bunched at a corner to create a 100% unobstructed opening.
SF 25 all-glass panels bunched at a corner to create a 100% unobstructed opening.

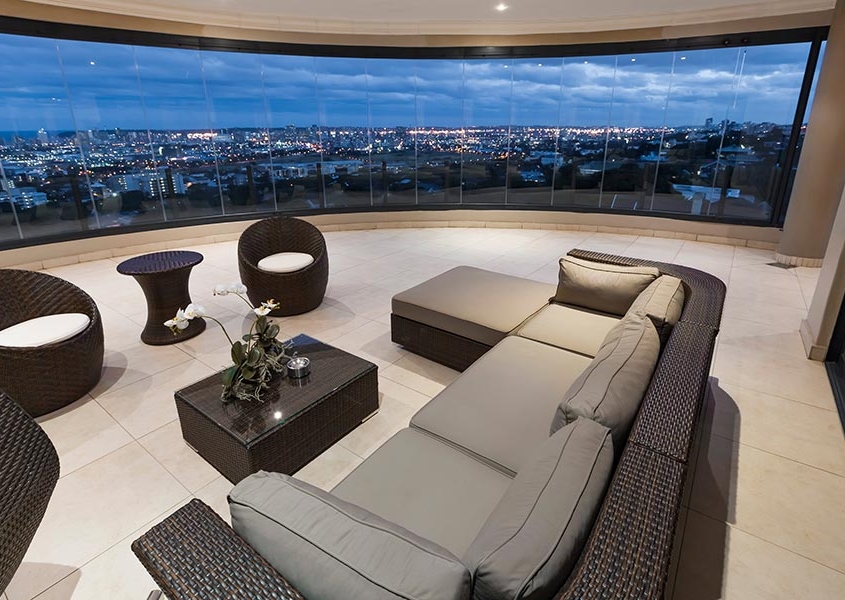

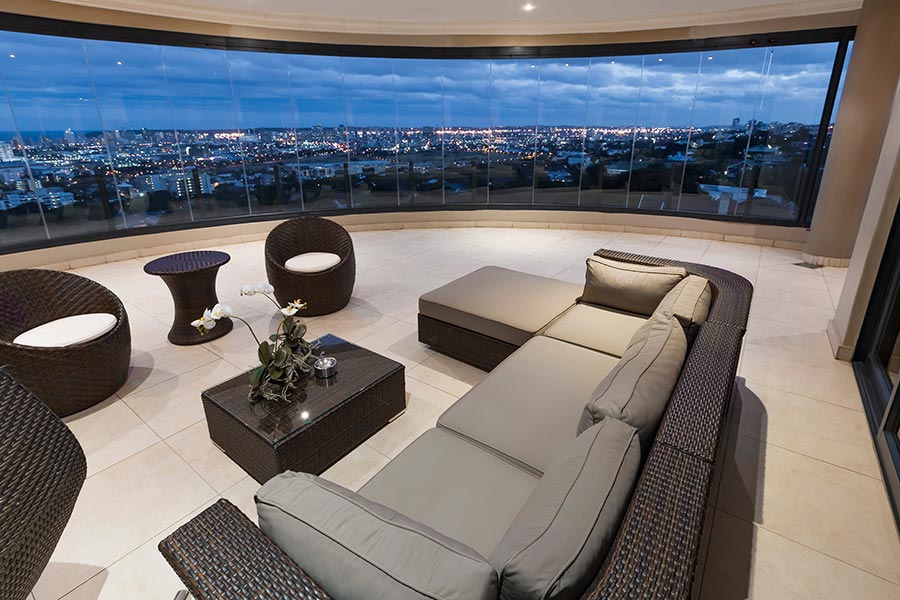

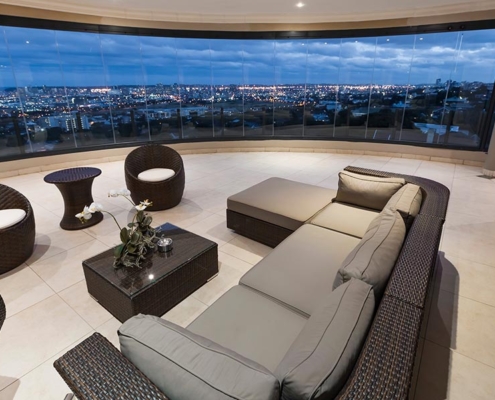

Expansive city view through a floor-to-ceiling SUNFLEX SF 25 slide and turn system.
Expansive city view through a floor-to-ceiling SUNFLEX SF 25 slide and turn system.

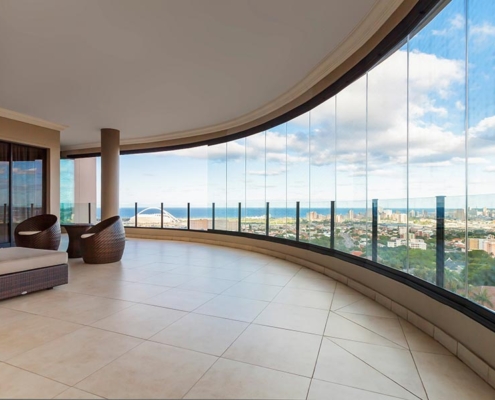

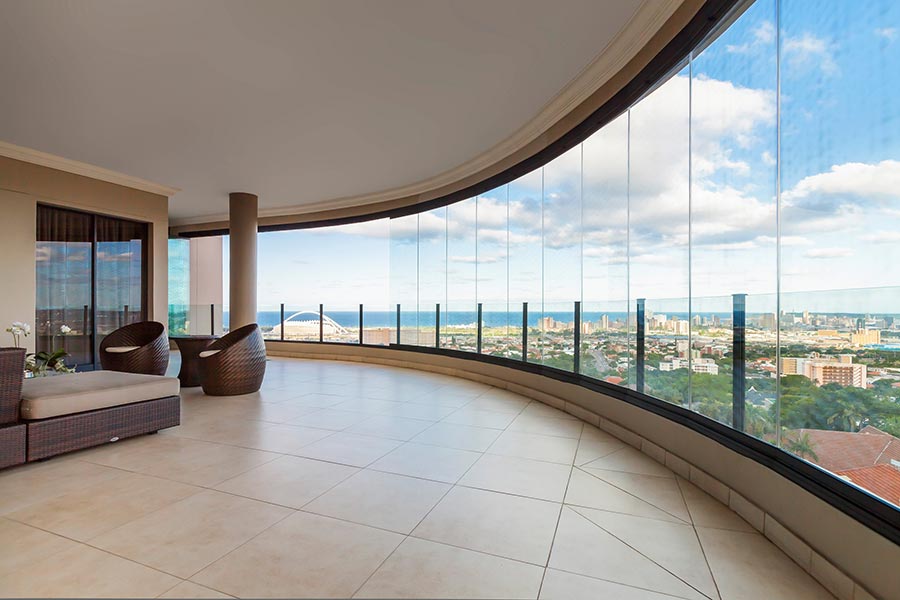

Curved balcony featuring a frameless SF 25 system for uninterrupted panoramic views.
Curved balcony featuring a frameless SF 25 system for uninterrupted panoramic views.

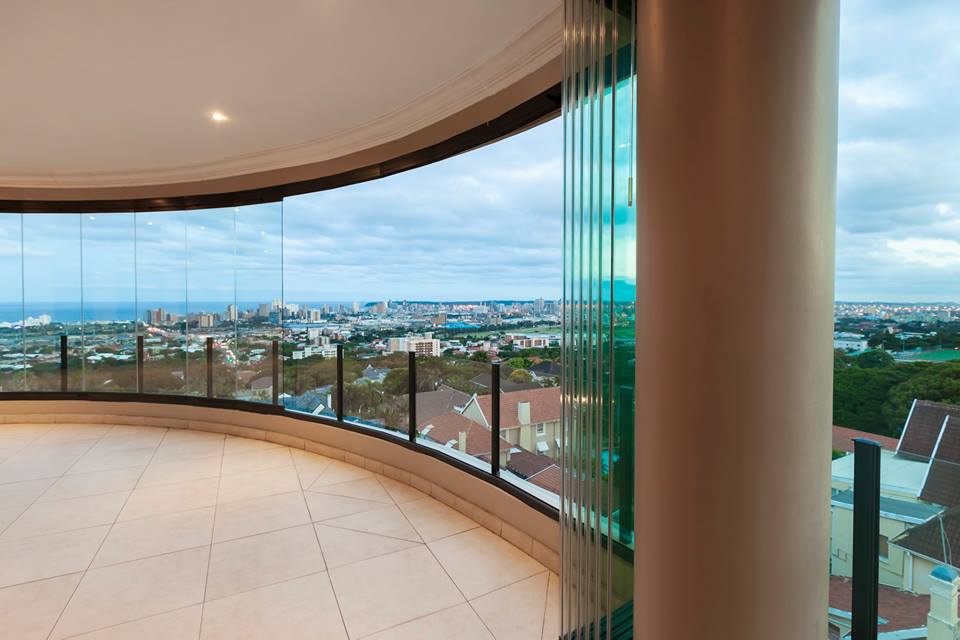

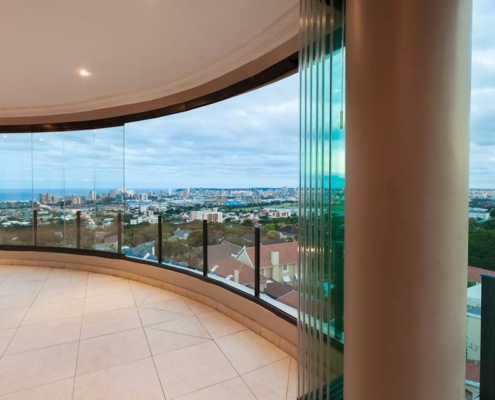

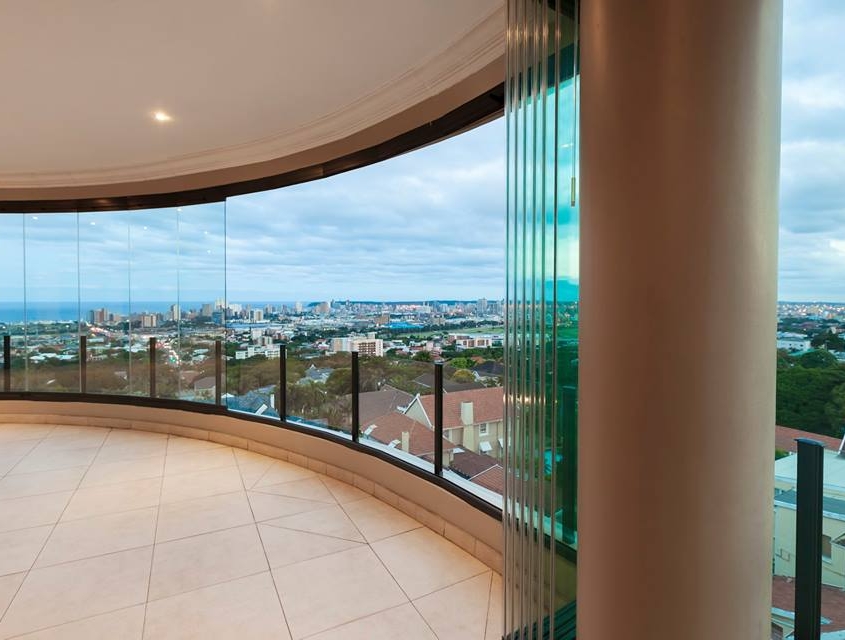

Frameless glass panels of the SF 25 system parked against a pillar on a curved balcony.
Frameless glass panels of the SF 25 system parked against a pillar on a curved balcony.

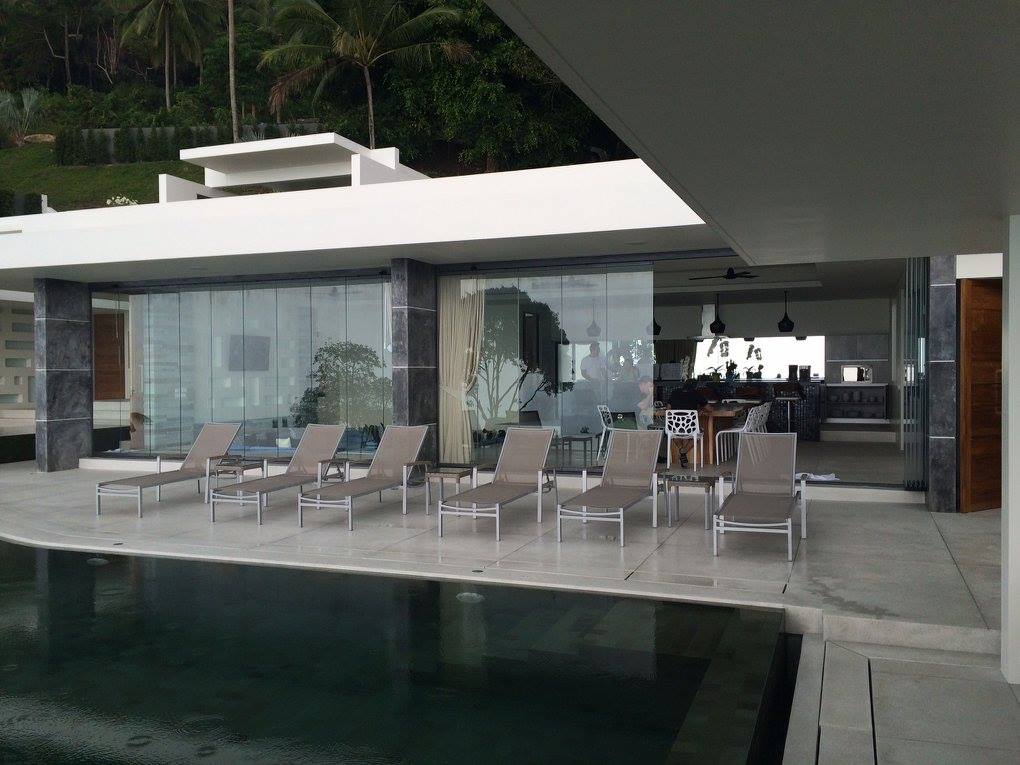

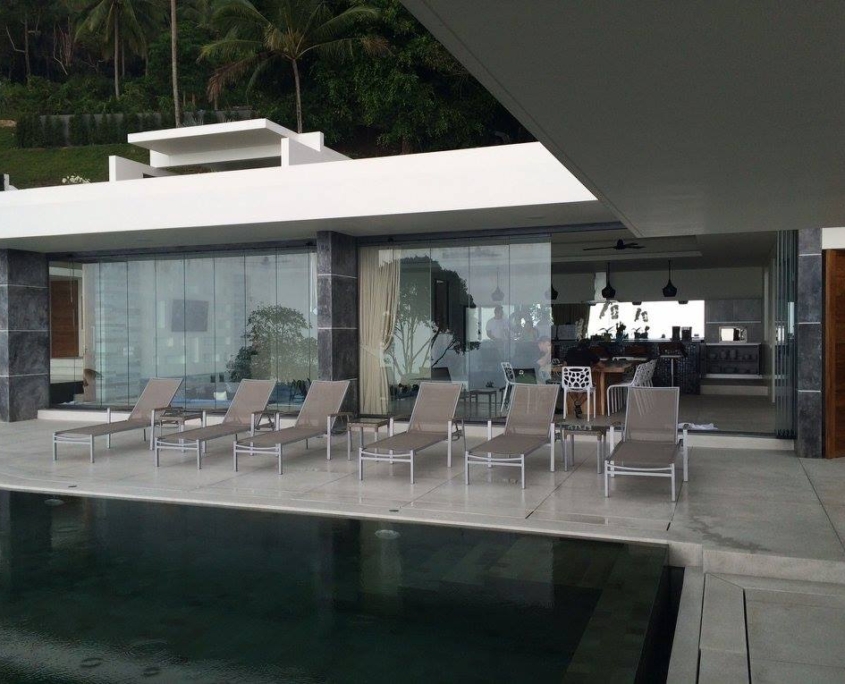

Luxury pool villa facade with integrated SF 25 frameless slide and turn doors.
Luxury pool villa facade with integrated SF 25 frameless slide and turn doors.

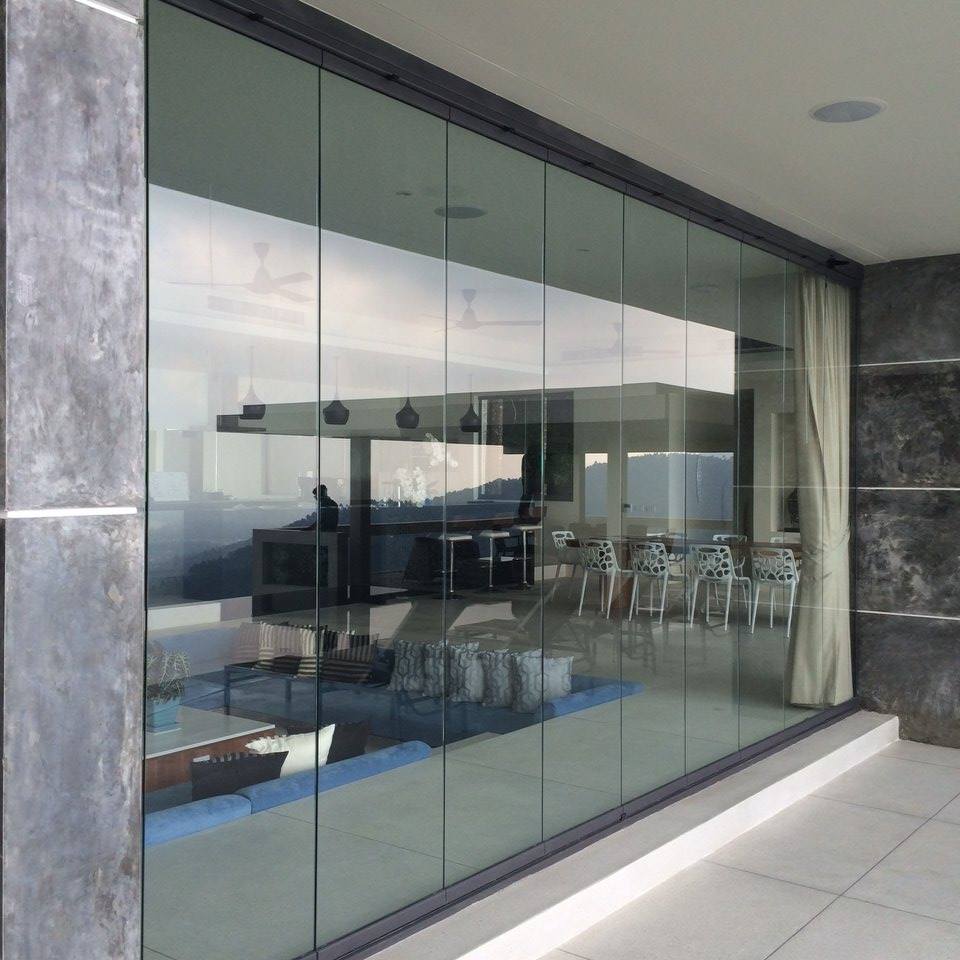

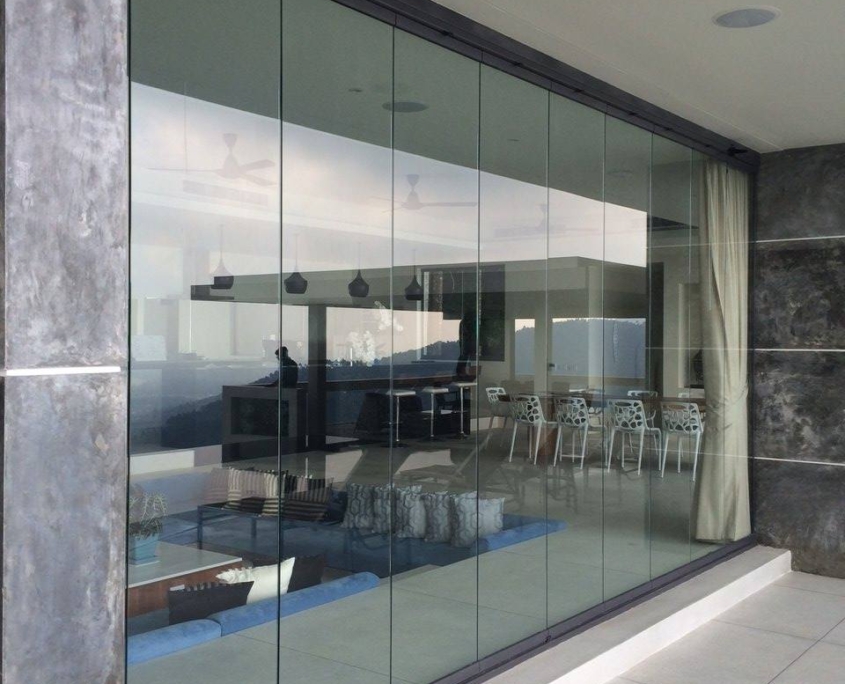

Bright office interior with SF 25 glass partition offering clear views of the surroundings.
Bright office interior with SF 25 glass partition offering clear views of the surroundings.

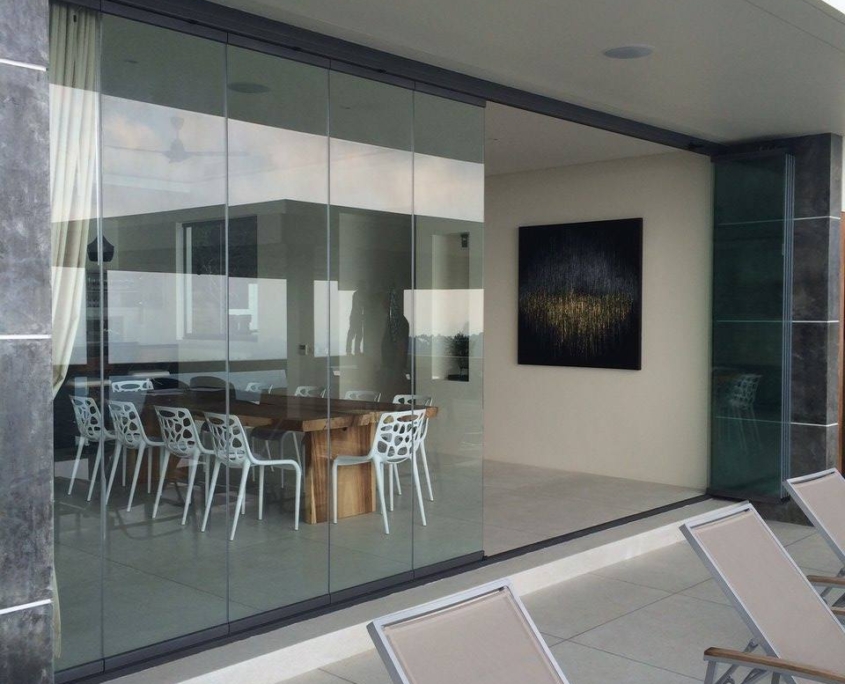

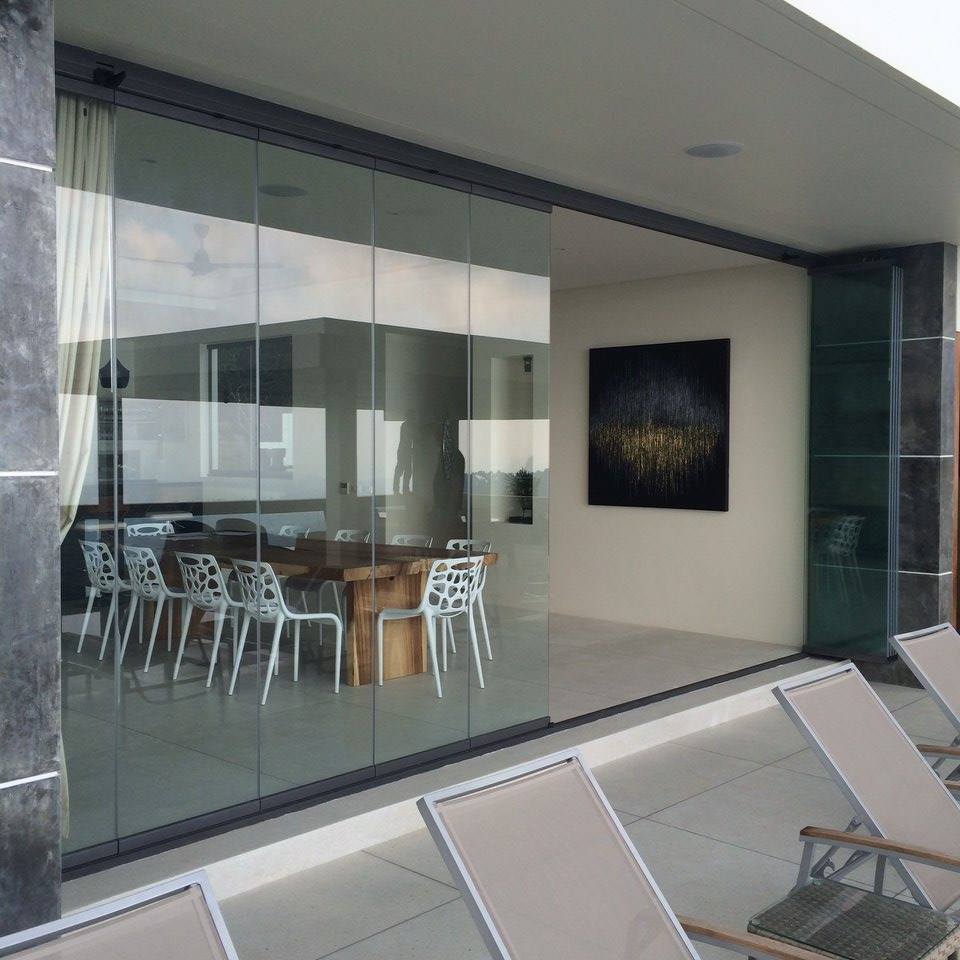

Minimalist dining area enclosed by an SF 25 all-glass system overlooking the pool.
Minimalist dining area enclosed by an SF 25 all-glass system overlooking the pool.

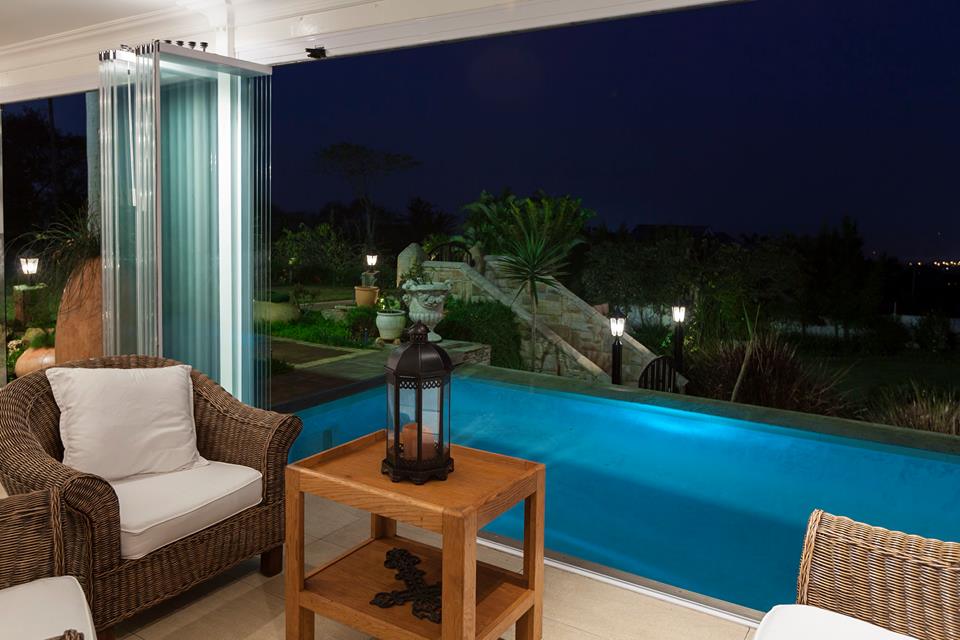

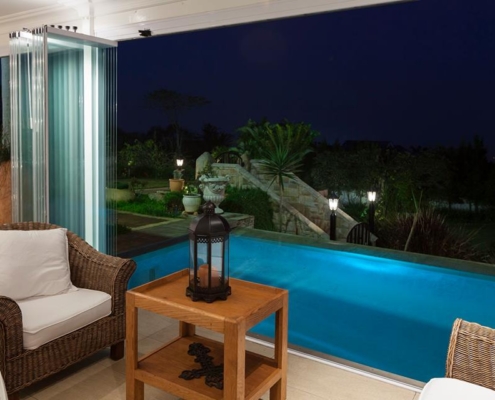

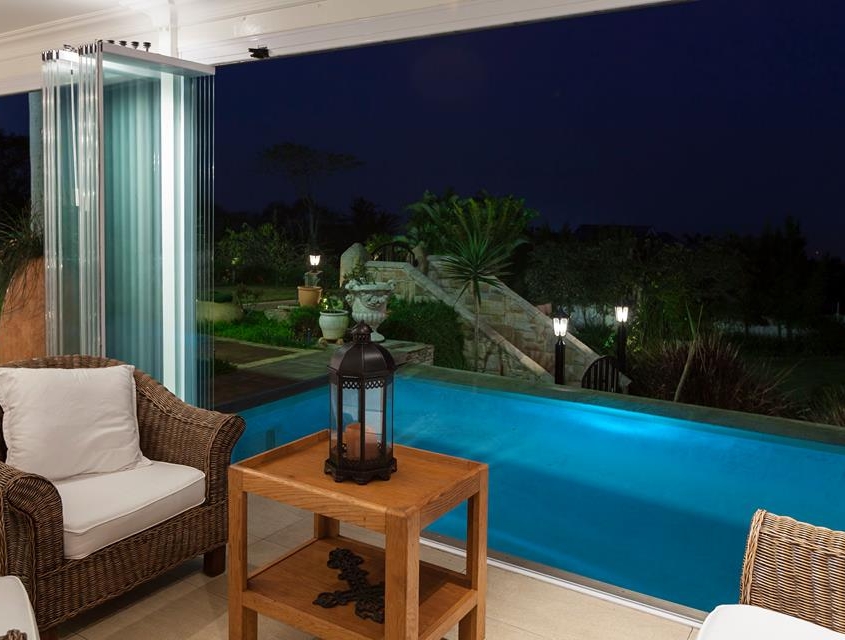

Evening view of a poolside terrace with SF 25 glass panels fully opened and bunched.
Evening view of a poolside terrace with SF 25 glass panels fully opened and bunched.

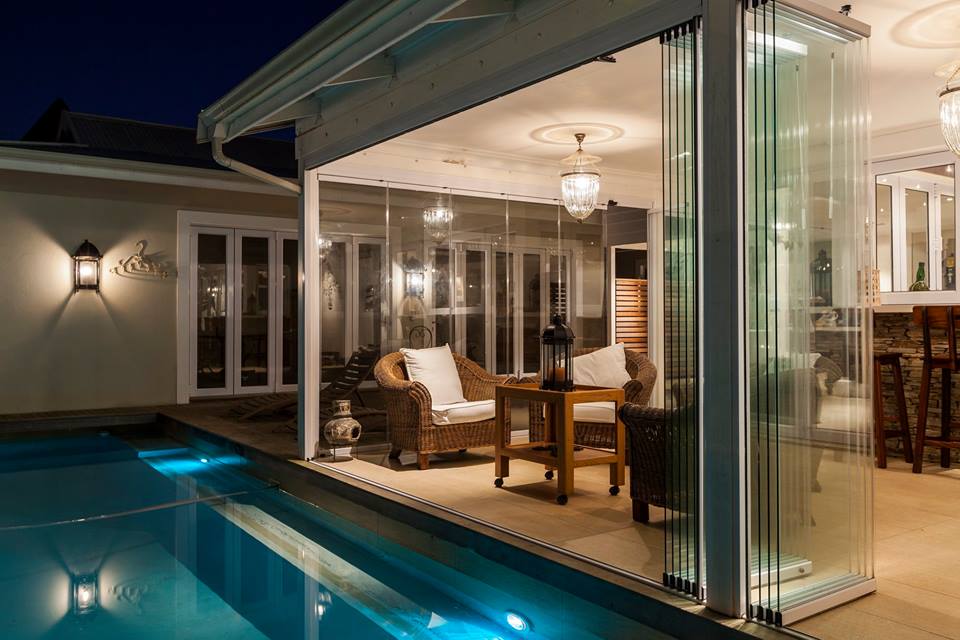

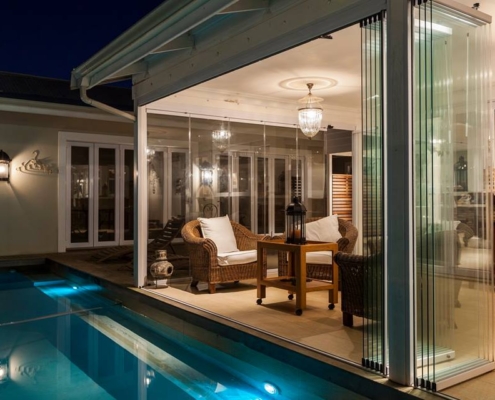

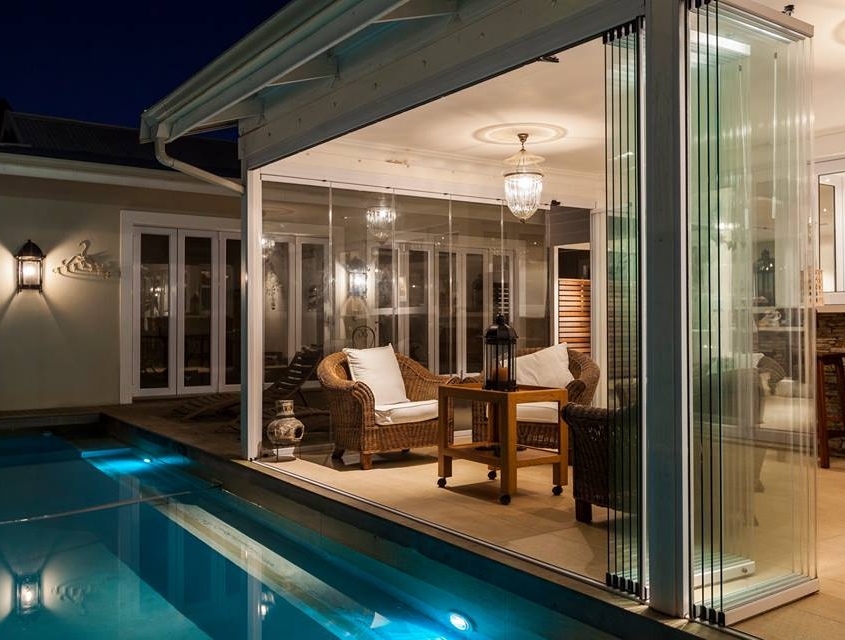

Warmly lit villa interior with SF 25 slide and turn doors leading to a private pool.
Warmly lit villa interior with SF 25 slide and turn doors leading to a private pool.

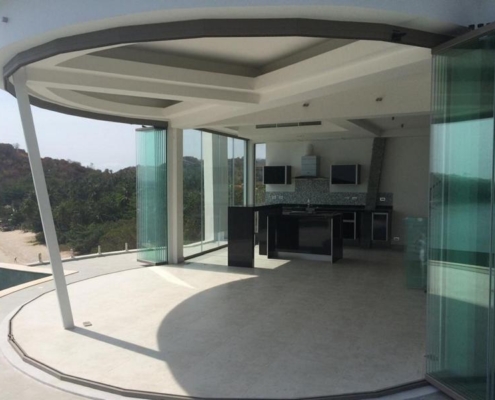

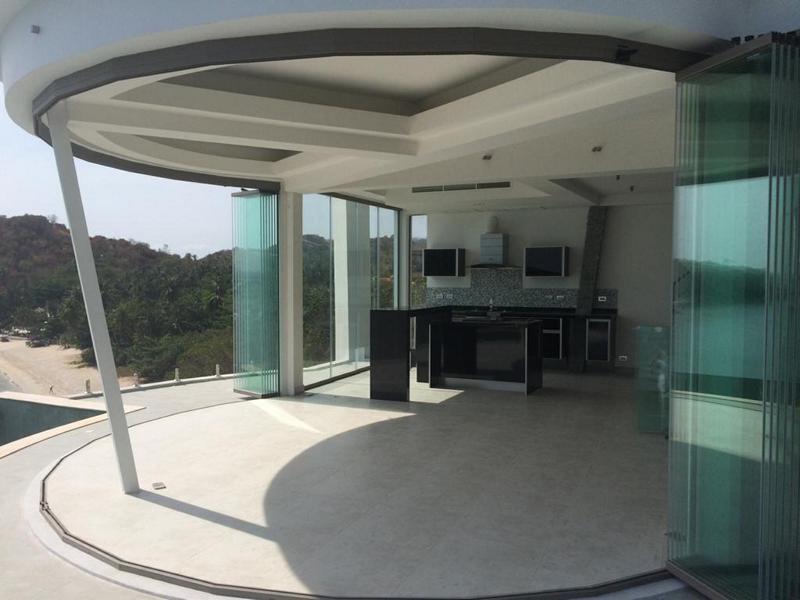

Custom curved SF 25 frameless glass system in a minimalist interior design.
Custom curved SF 25 frameless glass system in a minimalist interior design.

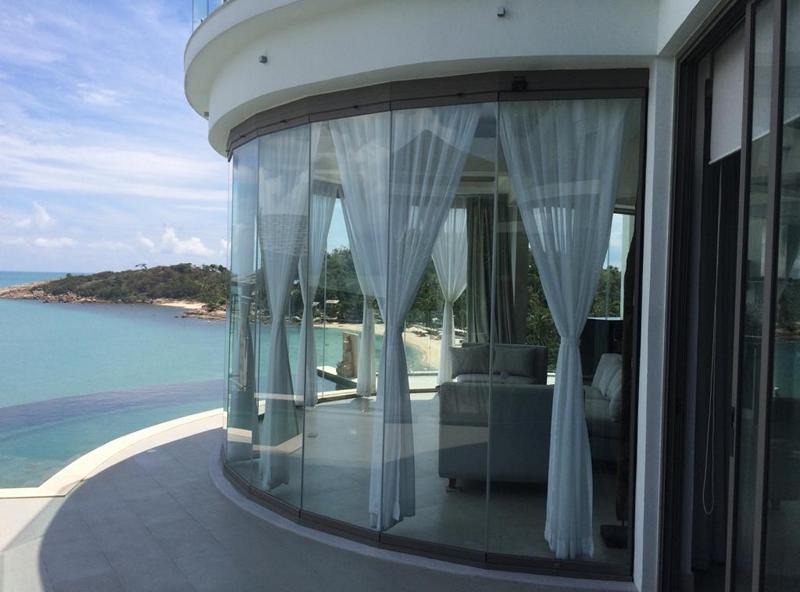

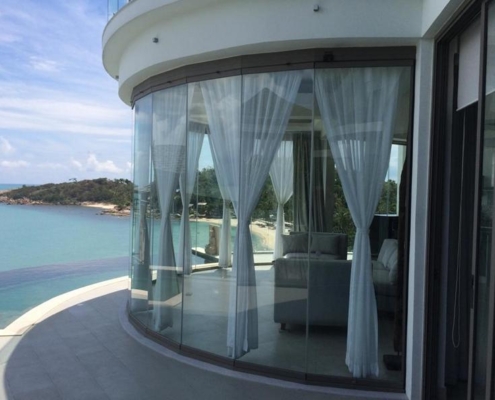

Circular sunroom with SF 25 frameless glazing offering a breathtaking 180-degree sea view.
Circular sunroom with SF 25 frameless glazing offering a breathtaking 180-degree sea view.

SF 25 Slide and Turn System / All Glass

The SUNFLEX SF 25 is the premier frameless all-glass system that redefines how you use your living space. Unlike traditional sliding doors, the SF 25 allows individual glass panels to be moved horizontally and then turned 90 degrees to be parked in a compact bundle. This unique “Slide and Turn” technology allows for a 100% opening of your balcony or terrace, providing an unobstructed panoramic view without any vertical frames.

Key Benefits of the SUNFLEX SF 25:

  • 100% Unobstructed Opening: Experience the ultimate freedom. Since the panels are parked at the side, you can open the entire front of your room, leaving no fixed glass elements behind.

  • Frameless Transparency: Enjoy maximum light and views. Without vertical aluminum profiles, the SF 25 offers a sleek, “all-glass” aesthetic that blends perfectly with modern Thai architecture.

  • Slide Around Corners: The innovative design allows panels to slide over angles between 90° and 180°, making it the ideal solution for complex balcony shapes and curved terraces.

  • Easy Maintenance & Cleaning: Because each panel can be turned inwards, you can easily and safely clean the exterior glass surfaces from the comfort of your room – even on high-rise buildings.

  • Enhanced Sound & Weather Protection: The SF 25 significantly reduces outside noise and provides a robust barrier against wind and tropical rain while maintaining a light, airy feel.

Explore our full collection of versatile slide and turn systems tailored for modern architecture.

Technical Details

Downloads

SF 25 Slide and Turn 1

SF 25 Slide and Turn 2

SF 25 Handling Manual

SF 25 Installation Manual

SF 25 Technical Documentation

SF25 Test Report (Airborne)

SF 25 Test Report (Wind Load 8mm 10mm Glass) 1

SF 25 Test Report (Wind Load 8mm 10mm Glass) 2

System Information

Profile system

  • Frame less all-glass slide and turn system
  • Load resistance:3900 Pa (ESG-H, 10 mm).
  • Airborne sound insulation Rw = 22 dB according to DIN EN ISO 140-3
  • Airborne sound insulation Rw = 34 dB according to DIN EN ISO 140-3 with gap gaskets
  • Option of flush or weathered bottom track
  • The flush bottom track is particularly suitable for use in “Barrier-free dwellings” according to DIN 18 025
  • Panels can be stacked open either internally or externally
  • Opening of panels by sliding to one side or to both sides
  • Optionally with or without lateral vertical frame profiles
  • Height variations can be compensated by a height compensation profile

Fittings

  • All fittings are concealed within the profiles
  • Low-maintenance, non-corroding and failsafe fittings
  • Inside and/or outside locking and unlocking possible
  • Locking and unlocking via pull rod or turning knob
  • Optionally with lever lock (“child-proof”)

Running assembly

  • Top running, maintenance-free horizontal running assemblies, each equipped with two rollers
  • The running assemblies feature each three smooth-running needle bearings and two carbon fibre reinforced polyamide rollers
  • Running assemblies out of stainless steel metal components
  • Low-noise, low-wear, heat and cold resistant running surfaces
  • Running assemblies pivot at any angle between 90° and 180°

Sealing and ventilation

  • Gap of approximatively 1-3 mm between the panels
  • PVC gap gaskets (optional)
  • Brush gaskets are fitted horizontally at the top and bottom on the inside and outside
  • Lower and upper brush gaskets are attached to the panel frames and not to the bottom track

Glazing

  • 6, 8, 10 and 12 mm tempered safety glass panes (ESG-H)
  • Panes secured via concealed screw-fixing system in top and bottom panel profiles
  • Subsequent replacement of panes without difficulty

Drainage

  • Unpressurized drainage via inclined floor construction
  • Integrated water drainage channel on inside of bottom track
  • End-caps for lateral sealing of bottom track
